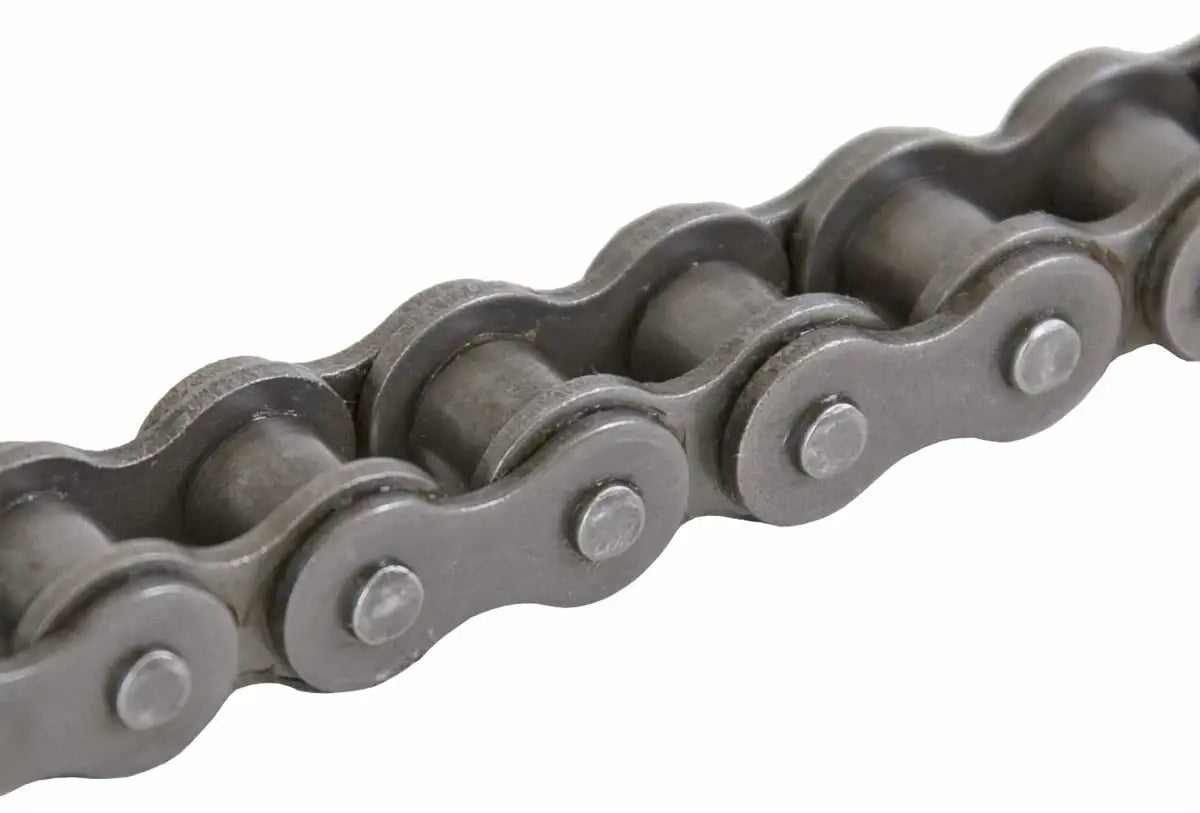

180 Roller Chain 10ft Box - 180 Chain | ANSI Roller Chain

Name: 180 Roller Chain 10ft Box - 180 Chain | ANSI Roller Chain
Brand: USA ROLLER CHAIN
SKU: ECO-180RC-10ft
Availability: InStock

SKU: ECO-180RC-10ft

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

180 Roller Chain 10ft Box - 180 Chain | ANSI Roller Chain Description/Features

180 Roller Chain 10ft Box - 180 Chain | ANSI Roller Chain Specifications

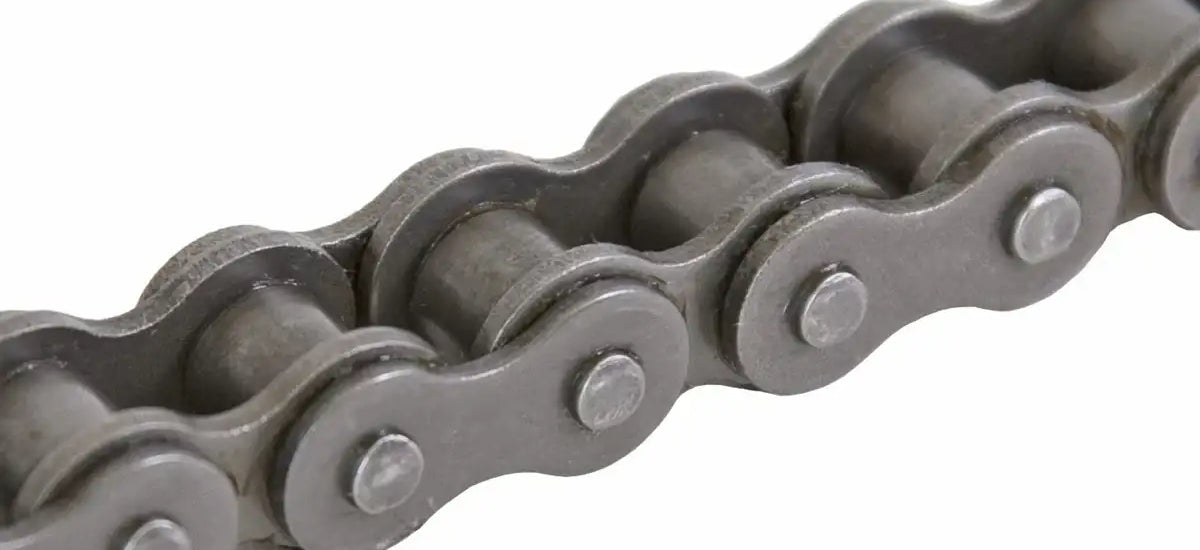

180 roller chain is a 2.25" pitch manufactured to ANSI B29.1 Standards and is supplied in a 10' length including one connecting link. More specifically, the 180 roller chain is utilized in heavy equipment and drive applications that are located in places such as mining operations, construction, drilling, kilns, bakeries, and more. Our 180 chain features a solid roller design accompanied by heat-treated and shot-peened pins, bushings, and sidebars. The combination of which results in a roller chain that is ready to handle its heavy-duty application. All of our roller chains are made with high-precision components for improved wear life and overall performance. For additional information or to get a quote on our 180 chains contact our customer support team and we will be happy to assist you!

180 Roller Chain Dimensions

180 Roller Chain 10ft Box - 180 Chain | ANSI Roller Chain

ANSI Chain Size: 180
Tensile Strength: 79,000 LBS
Pitch (P): 2.250"
Roller Diameter (D1): 1.406"
Width Between Inner Plates (B1): 1.406"
Pin Diameter (D2): 0.687"
Chain Pin Length (LR): 2.91"
Connecting Link Pin Length (LC): 3.28"
Inner Plate Height (H2): 2.11"
Plate Thickness (T): 0.281"
Chain Weight: 8.98 LBS/ FT
Additional Part#s: RS180, 180-1, RS180, 36A-1

180 Roller Chain Sprockets

The below charts show standard 180 chain sprockets, we also supply custom sprockets upon request.
180 A-Plate Sprockets

Sprocket Size	Tooth Count	Type	Outside Diameter	Stock Bore	(D)	Weight (LBS)
Sprocket Size	Tooth Count	Type	Outside Diameter	Stock Bore	(D)	Weight (LBS)
180A11	11	A	9.010	1 -/2''	5-1/2''	14.0
180A12	12	A	9.750	1-1/2''	6''	16.0
180A13	13	A	10.480	1-1/2''	6-3/4''	20.0
180A14	14	A	11.210	1-1/2''	7	24.0
180A15	15	A	11.930	1-1/2''	7	28.0
180A16	16	A	12.660	1-1/2''	7	32.0
180A17	17	A	13.390	1-1/2''	7	37.0
180A18	18	A	14.110	1-1/2''	7	43.0
180A19	19	A	14.830	1-1/2''	7-1/2''	47.0
180A20	20	A	15.560	1-1/2''	7-1/2''	53.0
180A21	21	A	16.280	1-1/2''	7-1/2''	57.0
180A22	22	A	17.000	1-1/2''	7-1/2''	62.0
180A23	23	A	17.720	1 -1/2''	7-1/2''	69.0
180A24	24	A	18.440	1-1/2''	7-1/2''	77.0
180A25	25	A	19.160	1-1/2''	7-1/2''	84.0
180A28	28	A	21.320	1-1/2''	8	104.0
180A30	30	A	22.760	1-1/2''	8-1/2''	120.0
180A35	35	A	26.350	1-1/2''	8-1/2''	172.0
180A40	40	A	29.940	1-1/2''	8-1/2''	229.0
180A45	45	A	33.530	1-1/2''	9''	284.0
180A54	54	A	39.980	1-1/2''	9''	420.0
180A60	60	A	44.280	1 -1/2''	9-1/2''	505.0

180 B-Huub Sprockets

Sprocket Size	Tooth Count	Type	Outside Diameter	Stock Bore	Recommend Max. Bore	Hub Diameter	Length Thru Bore	Weight (LBS)
Sprocket Size	Tooth Count	Type	Outside Diameter	Stock Bore	Recommend Max. Bore	Hub Diameter	Length Thru Bore	Weight (LBS)
180B11	11	B	9.010	1-1/2''	3-5/8''	5-1/2''	3''	29.0
180B12	12	B	9.750	1-1/2''	4''	6''	3''	32.0
180B13	13	B	10.480	1-1/2''	4-5/8''	6-3/4''	3-1/8''	40.0
180B14	14	B	11.210	1-1/2''	5-1/4''	7''	3-1/8''	44.0
180B15	15	B	11.930	1-1/2''	5-1/4''	7''	3-1/8''	48.0
180B16	16	B	12.660	1-1/2''	5-1/4''	7''	3-1/8''	52.0
180B17	17	B	13.390	1-1/2''	5-1/4''	7''	3-1/8''	58.0
180B18	18	B	14.110	1-1/2''	5-1/4''	7''	3-1/8''	63.0
180B19	19	B	14.830	1-1/2''	5-3/8''	7-1/2''	3-3/8''	74.0
180B20	20	B	15.560	1-1/2''	5-3/8''	7-1/2''	3-3/8''	81.0
180B21	21	B	16.280	1-1/2''	5-3/8''	7-1/2''	3-3/8''	83.0
180B22	22	B	17.000	1-1/2''	5-3/8''	7-1/2''	3-3/8''	92.0
180B23	23	B	17.720	1-1/2''	5-3/8''	7-1/2''	3-3/8''	99.0
180B24	24	B	18.440	1-1/2''	5-3/8''	7-1/2''	3-3/8''	105.0
180B25	25	B	19.160	1-1/2''	5-3/8''	7-1/2''	3-3/8''	113.0
180B28	28	B	21.320	1-1/2''	5-3/8''	8''	3-1/2''	135.0

180 C-Hub Sprockets

Sprocket Size	Tooth Count	Type	Outside Diameter	Stock Bore	Recommend Max. Bore	Hub Diameter	Length Thru Bore	Weight (LBS)
Sprocket Size	Tooth Count	Type	Outside Diameter	Stock Bore	Recommend Max. Bore	Hub Diameter	Length Thru Bore	Weight (LBS)
180C30	30	C	22.760	1-1/2''	5 3/4''	8-1/2''	4-3/8''	180.0
180C35	35	C	26.350	1-1/2''	5 3/4''	8-1/2''	4-3/8''	222.0
180C40	40	C	29.940	1-1/2''	5 3/4''	8-1/2''	4-3/8''	270.0
180C45	45	C	33.530	1-1/2''	''	9''	5''	315.0
180C54	54	C	39.980	1-1/2''	6''	9''	5''	477.0
180C60	60	C	44.280	1-1/2''	6 1/2''	9-1/2''	5-3/8''	489.0

Premium 180 Roller Chain

- Premium 180 Roller Chain X 10ft Box
For the most demanding applications we offer our Premier Series 180 chains, these chains are the strongest ANSI chains on the market and utilize proprietary manufacturing techniques for the ultimate roller chain!
