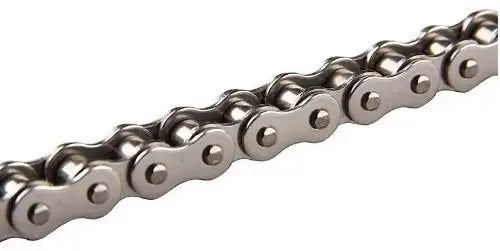

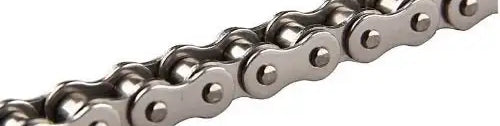

Economy Plus #120 Stainless Steel Roller Chain - 10ft Box
SKU: ECO-120SS-10FT
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Economy Plus #120 Stainless Steel Roller Chain - 10ft Box Description/Features
Economy Plus #120 Stainless Steel Roller Chain - 10ft Box Specifications
This #120 Stainless Steel Roller Chain fully meets all ANSI standards and is a durable, corrosion resistant, stainless steel roller chain. Economy Plus #120 stainless steel roller chain has a high tensile strength, and is constructed entirely out of 304-grade stainless steel. Making a roller chain using 304-Grade Stainless Steel creates a stainless steel roller chain that is high strength, resistant to chemical attack, and highly resistant to corrosion. This #120 stainless steel roller chain can run in temperatures ranging from -200° - 700° Degrees Fahrenheit, (these temperatures may vary based on application). #120 Stainless Steel roller chain is supplied as 10ft boxes, each 10ft box will come with one connecting link, and we offer additional connecting links and offset links if needed. We also offer a full line of #120 Stainless Steel Sprockets and attachments. For additional information on #120 stainless steel roller chain, or to get a quote for special lengths, or attachments, or sprockets, please contact us and we will be happy to assist you.

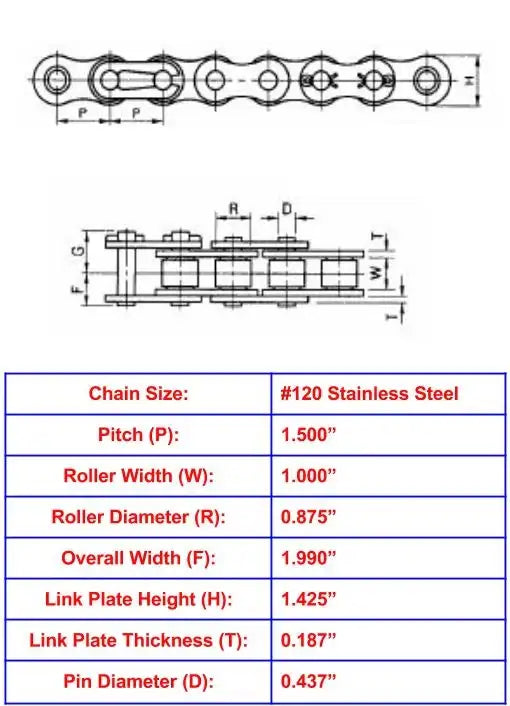

Economy Plus #120 Stainless Steel Roller Chain Dimensions
- Chain Size: #120SS
- Pitch (P): 1.500"
- Roller Width (W): 1.000"
- Roller Diameter (D): 0.875"
- Overall Chain Width (F): 1.990"
- Link Plate Height (H): 1.425"
- Link Plate Thickness (T): 0.187"
- Pin Diameter (E): 0.437"
- Specifications Met: ANSI Standards
- Chain Size: #120SS
- Pitch (P): 1.500"
- Roller Width (W): 1.000"
- Roller Diameter (D): 0.875"
- Overall Chain Width (F): 1.990"
- Link Plate Height (H): 1.425"
- Link Plate Thickness (T): 0.187"
- Pin Diameter (E): 0.437"
- Specifications Met: ANSI Standards
