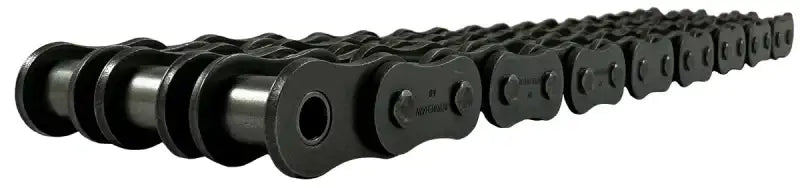

Premium Metric 08B-3 Roller Chain - 10ft Box
08B-3 Chain Dimensions

- Part #: 08B-3
- Pitch (P): 12.70mm
- Roller Width (R): 7.75mm
- Roller Diameter (D): 8.51mm
- Overall Width (W): 44.90mm

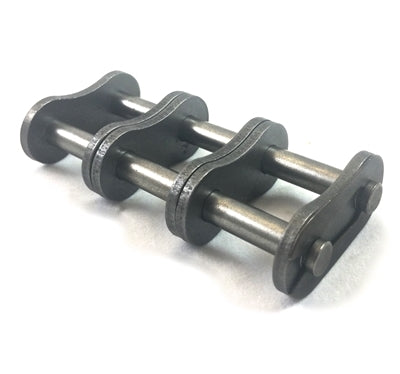

- Connecting Link Overall Width (X): 48.80mm
- Plate Height (H): 11.56mm
- Plate Thickness (T): 1.58mm
- Pin Diameter (L): 4.44mm
- Minimum Breaking Load: 4,850 KGS
- Weight: 2.0 kG/ m

- Part #: 08B-3
- Pitch (P): 12.70mm
- Roller Width (R): 7.75mm
- Roller Diameter (D): 8.51mm
- Overall Width (W): 44.90mm
- Connecting Link Overall Width (X): 48.80mm
- Plate Height (H): 11.56mm
- Plate Thickness (T): 1.58mm
- Pin Diameter (L): 4.44mm
- Minimum Breaking Load: 4,850 KGS
- Weight: 2.0 kG/ m
