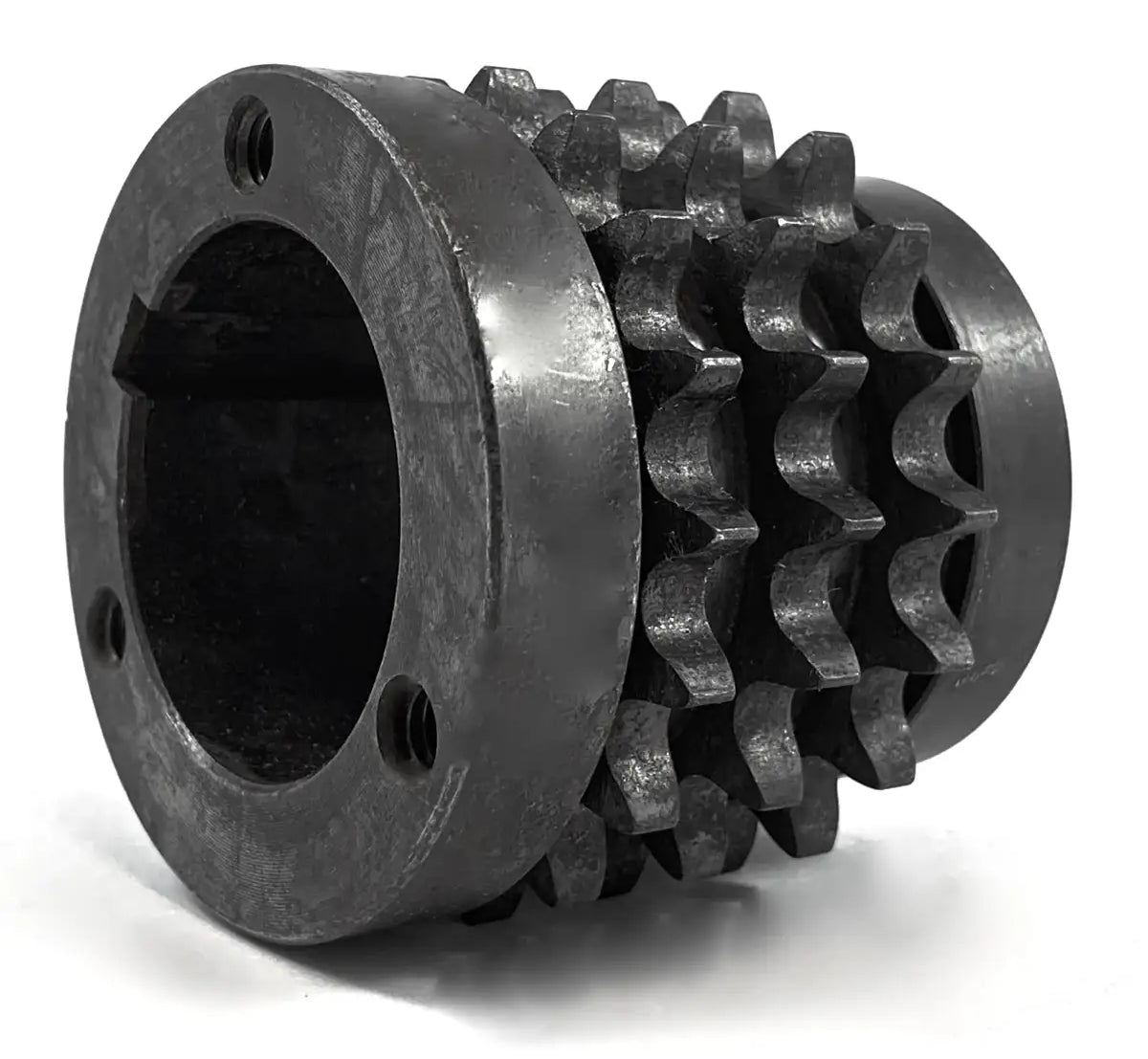

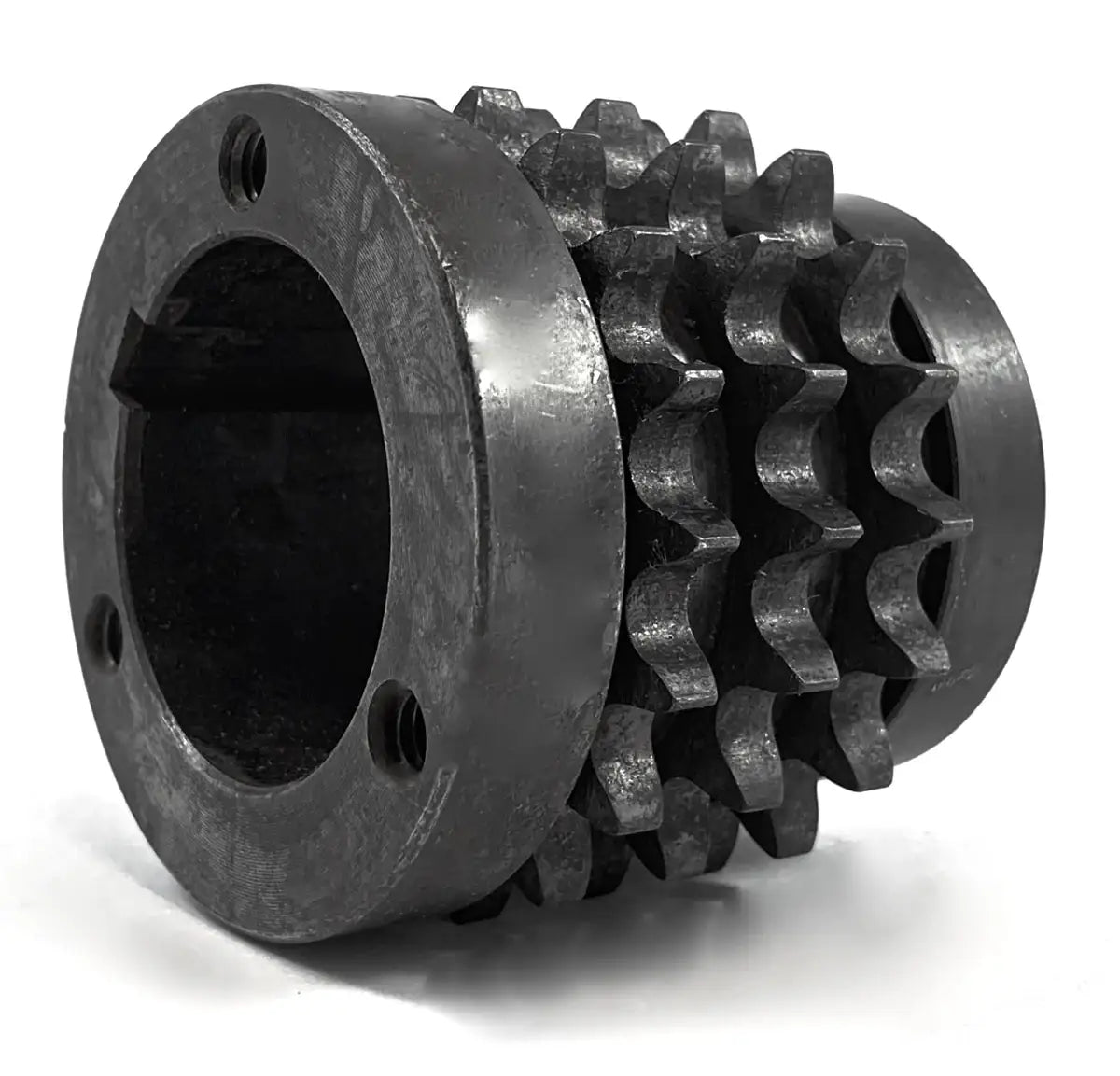

Triple E40Q36H Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: E40Q36H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Triple E40Q36H Sprocket Features
Triple E40Q36H Sprocket Specifications
E40Q36H Sprocket is a triple 36-tooth taper bushed style sprocket that utilizes a Q1 bushing. Our triple E40Q36H sprocket is dimensionally manufactured following ANSI Standards, which essentially means that it directly interchanges with other brands. More specifically to our sprocket, it is made utilizing high-quality mild steel and is made with high precision tolerances for optimal long-term performance. The sprocket also has heat-treated hardened teeth that further increases the working life and durability. Besides the sprocket, we also stock Q1 bushings, 40-3 triple roller chain, v-belts, v-belt pulleys, electric motors, gear reducers, bearings, and much more! For more information or to get a quote please contact our customer service team and we will be happy to assist you.
E40Q36H Sprocket Dimensions
- Sprocket Size: E40Q36H
- Tooth Count: 36
- Bushing Type: Q1
- Outside Diameter: 6.020"
- Pitch Diameter: 5.737"
- Sprocket Type: 22
- Maximum Bore: 2-11/16"
- Dimension (OL): 2-25/32"
- Dimension (L): 2-1/2"
- Dimension (C): 0"
- Dimension (H): 4-1/8"
- Dimension (P): 1-3/32"
- Dimension (T): 0.275"
- Sprocket Weight With Bushing: 11.1 LBS
- Sprocket Weight: 7.6 LBS
- Sprocket Size: E40Q36H
- Tooth Count: 36
- Bushing Type: Q1
- Outside Diameter: 6.020"
- Pitch Diameter: 5.737"
- Sprocket Type: 22
- Maximum Bore: 2-11/16"
- Dimension (OL): 2-25/32"
- Dimension (L): 2-1/2"
- Dimension (C): 0"
- Dimension (H): 4-1/8"
- Dimension (P): 1-3/32"
- Dimension (T): 0.275"
- Sprocket Weight With Bushing: 11.1 LBS
- Sprocket Weight: 7.6 LBS
