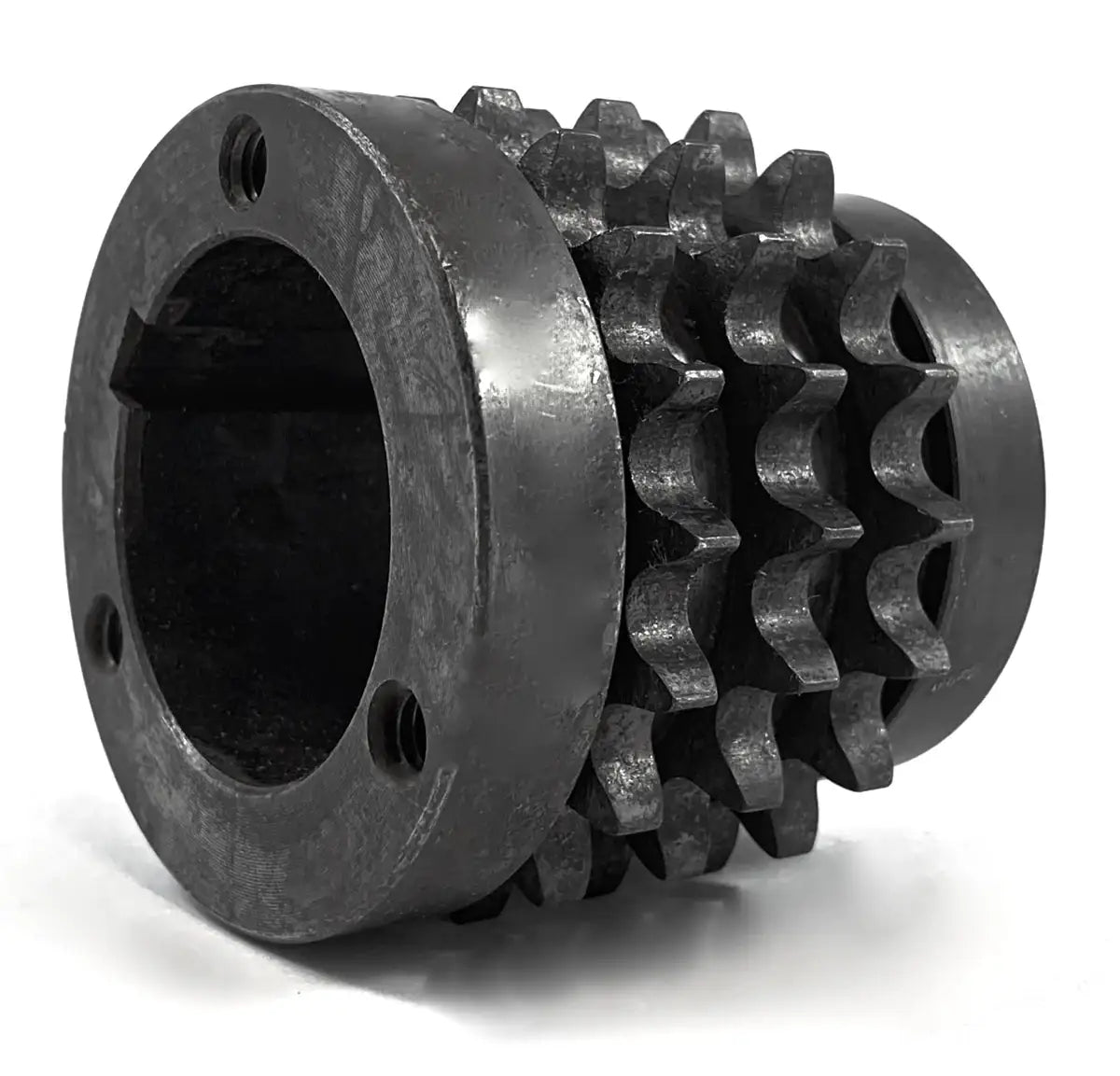

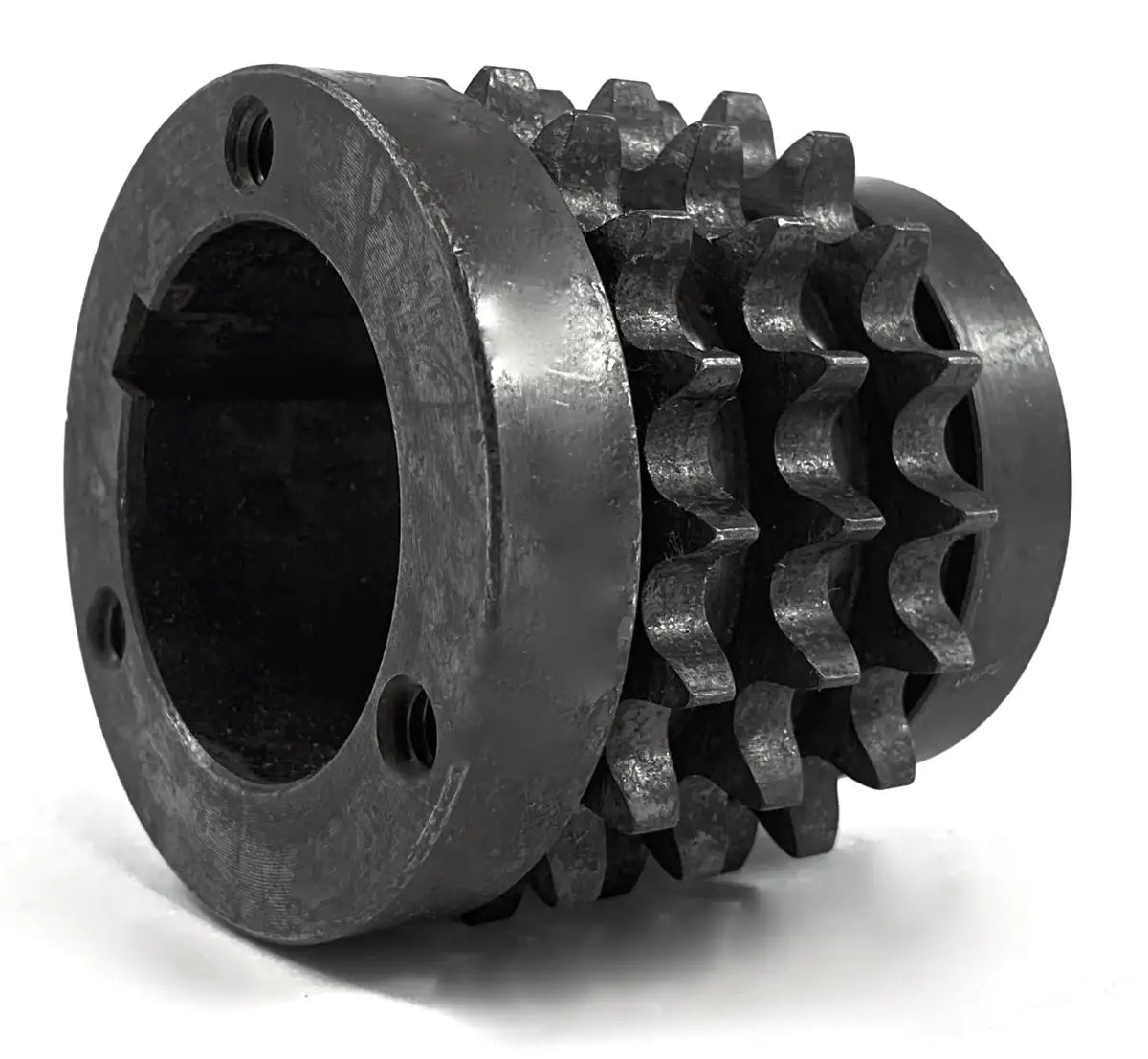

Triple E40P24H Sprocket
Note:
Interchanges With Other Brands
SKU: E40P24H-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Triple E40P24H Sprocket Description/Features
Triple E40P24H Sprocket Specifications
E40P24H Sprocket is a triple 24-tooth taper bushed style sprocket that utilizes a P1 bushing. Our triple E40P24H sprocket is dimensionally manufactured following ANSI Standards, which essentially means that it directly interchanges with other brands. More specifically to our sprocket, it is made utilizing high-quality mild steel and is made with high precision tolerances for optimal long-term performance. The sprocket also has heat-treated hardened teeth that further increases the working life and durability. Besides the sprocket, we also stock P1 bushings, 40-3 triple roller chain, v-belts, v-belt pulleys, electric motors, gear reducers, bearings, and much more! For more information or to get a quote please contact our customer service team and we will be happy to assist you.
E40P24H Sprocket Dimensions
- Sprocket Size: E40P24H
- Tooth Count: 24
- Bushing Type: P1
- Outside Diameter: 4.100"
- Pitch Diameter: 3.831"
- Sprocket Type: 23
- Maximum Bore: 1-3/4"
- Dimension (OL): 2-9/32"
- Dimension (L): 1-15/16"
- Dimension (C): 3/32"
- Dimension (H): 3"
- Dimension (P): 5/8"
- Dimension (T): 0.275"
- Sprocket Weight With Bushing: 3.9 LBS
- Sprocket Weight: 2.6 LBS
- Sprocket Size: E40P24H
- Tooth Count: 24
- Bushing Type: P1
- Outside Diameter: 4.100"
- Pitch Diameter: 3.831"
- Sprocket Type: 23
- Maximum Bore: 1-3/4"
- Dimension (OL): 2-9/32"
- Dimension (L): 1-15/16"
- Dimension (C): 3/32"
- Dimension (H): 3"
- Dimension (P): 5/8"
- Dimension (T): 0.275"
- Sprocket Weight With Bushing: 3.9 LBS
- Sprocket Weight: 2.6 LBS
