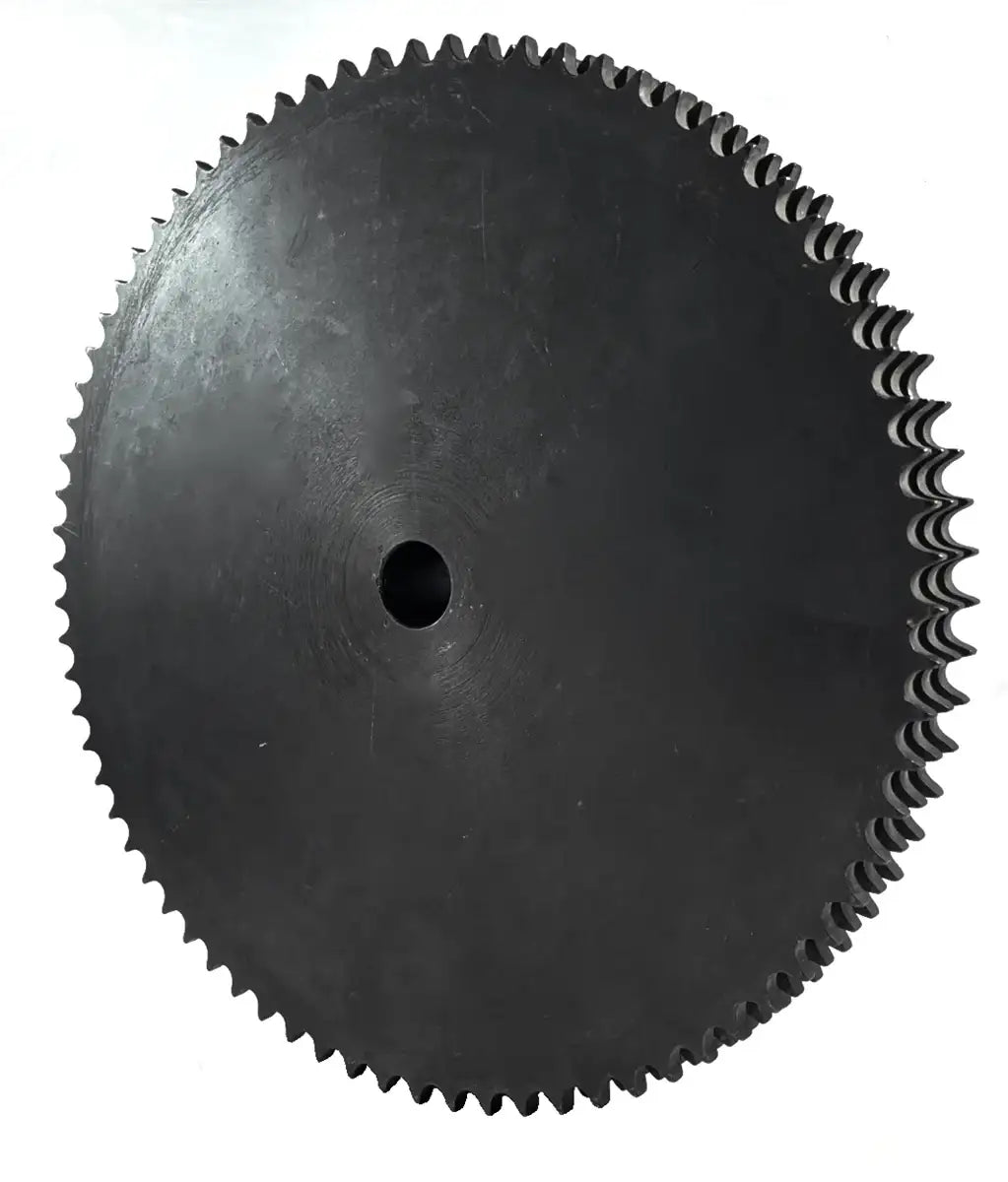

Triple E06B96 Sprocket With Stock Bore

This E06B96 sprocket with a stock bore is a metric roller chain sprocket manufactured under ISO and British Standard 228. Our E06B96 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. Besides the stock bore we also can supply these sprockets with a specific plain or finished (has key-way and set screws) bore size. We also offer upgrades on our E06B96 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 96 tooth sprocket, we also stock a high-quality 06B-3 roller chain and a wide array of roller chain accessories. For more information or to get a quote on E06B96 sprockets, please contact us and one of our sales team members will be happy to assist you.

E06B96 Sprocket Dimensions

• Sprocket Size: E06B96
• Tooth Count: 96
• Pitch Diameter: 291.11mm
• Stock Bore: 25mm
• Maximum Bore: 64mm
• Dimension (H): 100mm
• Dimension (L): 54mm
• Sprocket Weight: 13.75 kg
