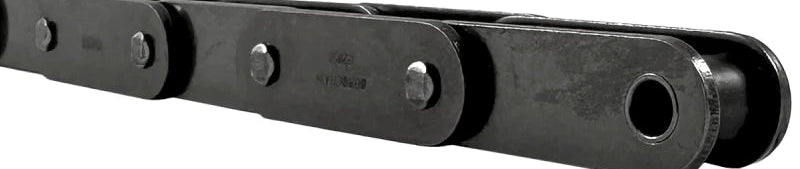

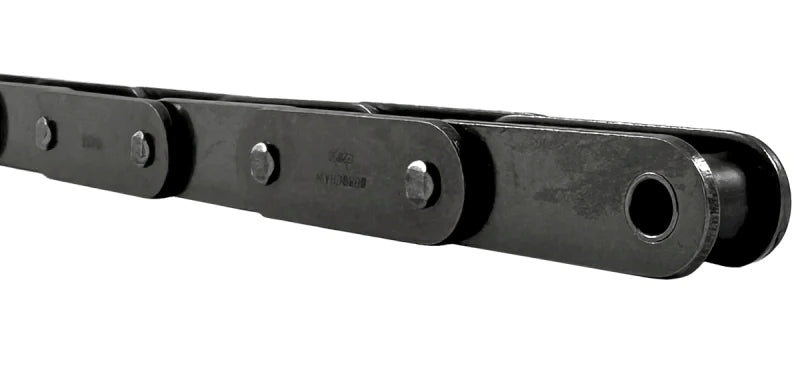

DUROCHAIN 208B Roller Chain
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Experience the DUROCHAIN Difference.
DUROCHAIN Premium #208B single-strand double-pitch metric roller chain is built for dependable power transmission, smooth operation, and extended service life in demanding industrial applications. Manufactured to applicable ISO, DIN, and British Standards, this chain provides accurate dimensional compatibility with metric double-pitch roller chain systems and components.
Featuring a 25.40mm pitch, DUROCHAIN #208B double-pitch metric chain is a reliable choice for industrial machinery, conveyor systems, material handling equipment, packaging machinery, agricultural equipment, and other applications requiring consistent operation over longer pitch distances.
Built for rock-solid reliability and extended service life, every DUROCHAIN #208B roller chain is manufactured using premium carbon steel components, through-hardened pins, solid bushings, solid rollers, quad-staked rivets, precision-prepared plate holes, and factory-applied lubrication to help improve strength, wear resistance, shock-load capability, and overall operating performance.
DUROCHAIN Premium #208B Double-Pitch Metric Roller Chain Features
Through-Hardened Pins
DUROCHAIN pins are through-hardened for increased strength, improved wear resistance, and dependable performance throughout the service life of the chain.
Solid Bushings & Rollers
Precision solid bushings and solid rollers provide smooth cylindrical bearing surfaces that help reduce friction, resist deformation, and improve overall chain wear life.
Superior Plate Hole Preparation
Precision-pierced, shaved, and ball-drifted plate holes help promote accurate component fitment, improved pin-to-plate contact, and dependable holding strength.
Max Contour Side Plates
Max contour side plates are designed to add strength where it matters while maintaining ANSI dimensional requirements for proper interchangeability.
Quad-Staked Rivets
High-hold quad-staked rivets help improve chain integrity, side-load capability, shock-load resistance, and dependable performance in demanding industrial applications.
Factory Preload
Factory preloading helps properly seat and align chain components before installation, reducing initial elongation and promoting consistent operation once placed into service.
DUROCHAIN 208B Roller Chain Specifications
- Part #: 208B
- Pitch (P): 25.40mm
- Roller Width (R): 7.75mm
- Roller Diameter (D): 8.51mm
- Overall Width (W): 16.70mm
- Connecting Link Overall Width (X): 17.20mm
- Plate Height (H): 11.18mm
- Plate Thickness (T): 1.60mm
- Pin Diameter (L): 4.45mm
- Minimum Breaking Load: 3,880 LBS
- Weight Per Foot: 0.31 LBS
