DUROCHAIN Premium C2080H Connecting Link
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Experience the DUROCHAIN Difference

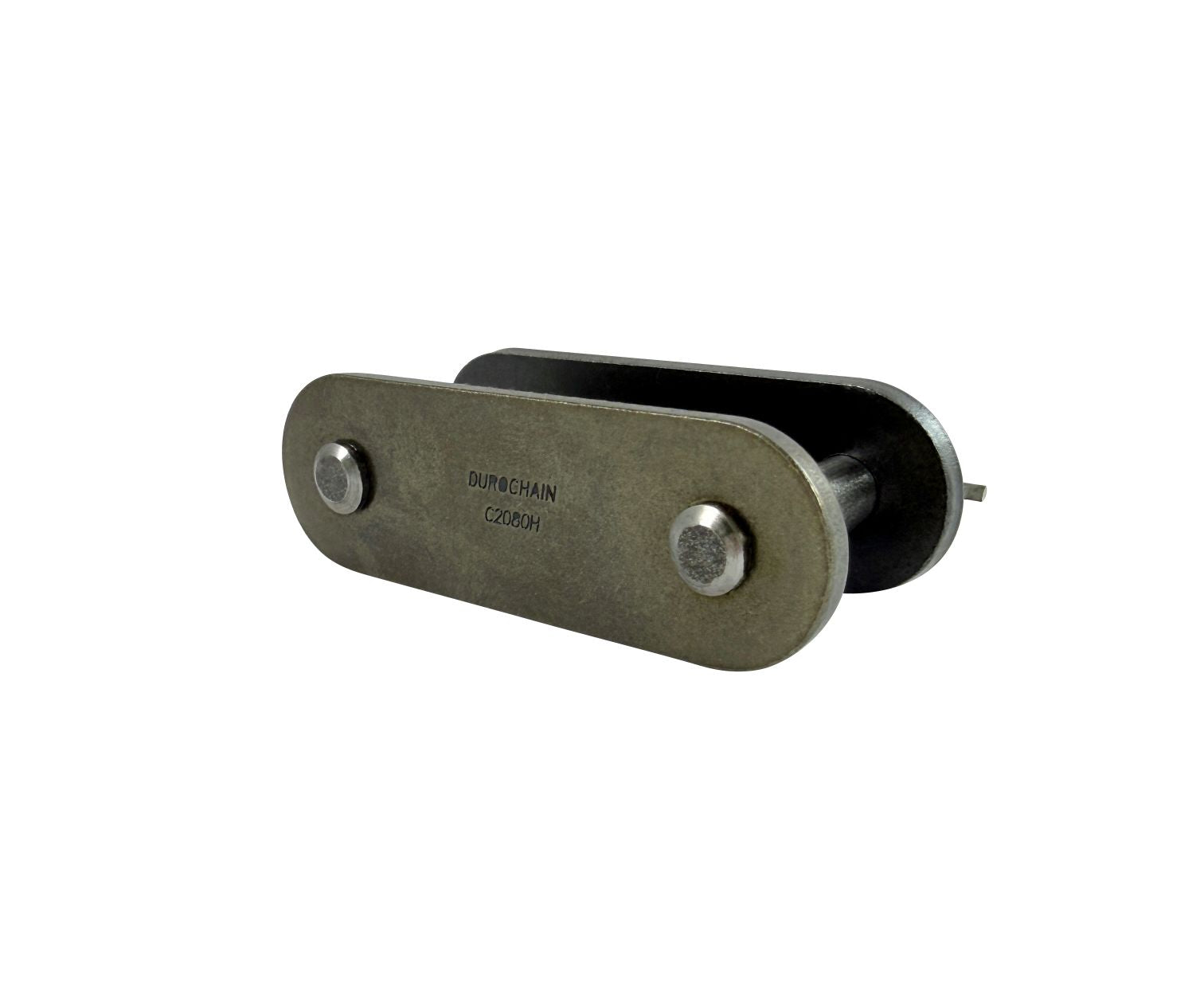

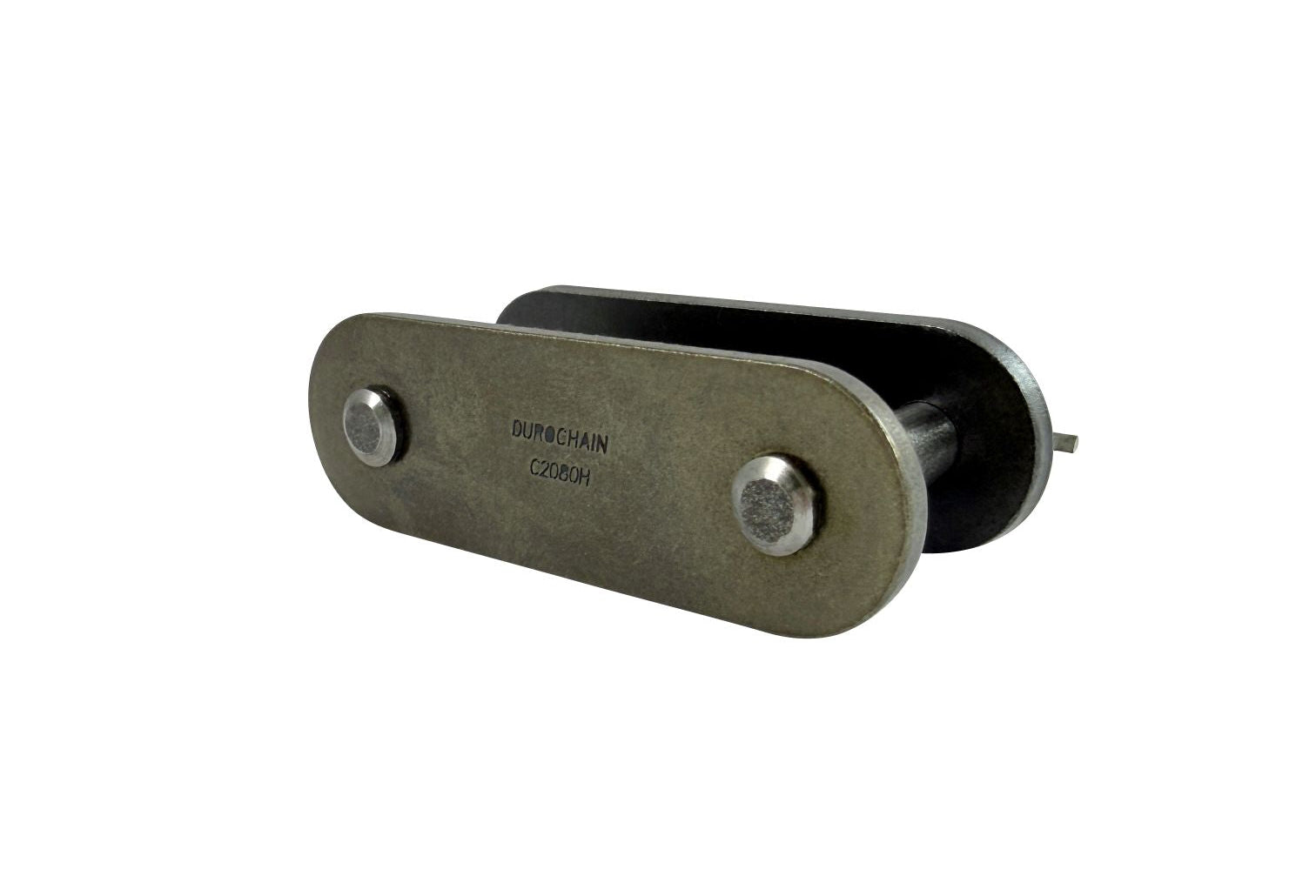

DUROCHAIN Premium #C2080H Connecting Links are made for specific use with #C2080H and #C2082H roller chains. Precision manufactured for secure installation, dependable retention, and long-term durability, these connecting links help keep your double pitch chain performing reliably in demanding conveying and drive applications.
Each DUROCHAIN #C2080H connecting link is manufactured with heat-treated components, hardened pins, precision-prepared side plates, and a high-strength cotter pin retainer to help improve wear life, strength, and dependable link performance.
Commonly used in conveyor systems, material handling equipment, packaging machinery, agricultural equipment, and general OEM applications, DUROCHAIN #C2080H connecting links deliver premium performance where reliability matters most.
DUROCHAIN Premium #C2080H Connecting Link Features
Hardened High-Strength Pins
DUROCHAIN connecting link pins undergo a specialized hardening process to help improve wear life, strength, and fatigue resistance in demanding applications.
Unique Rivets
DUROCHAIN connecting links feature a unique rivet design that helps improve shock load resistance, side thrust capability, and overall link integrity in demanding applications.

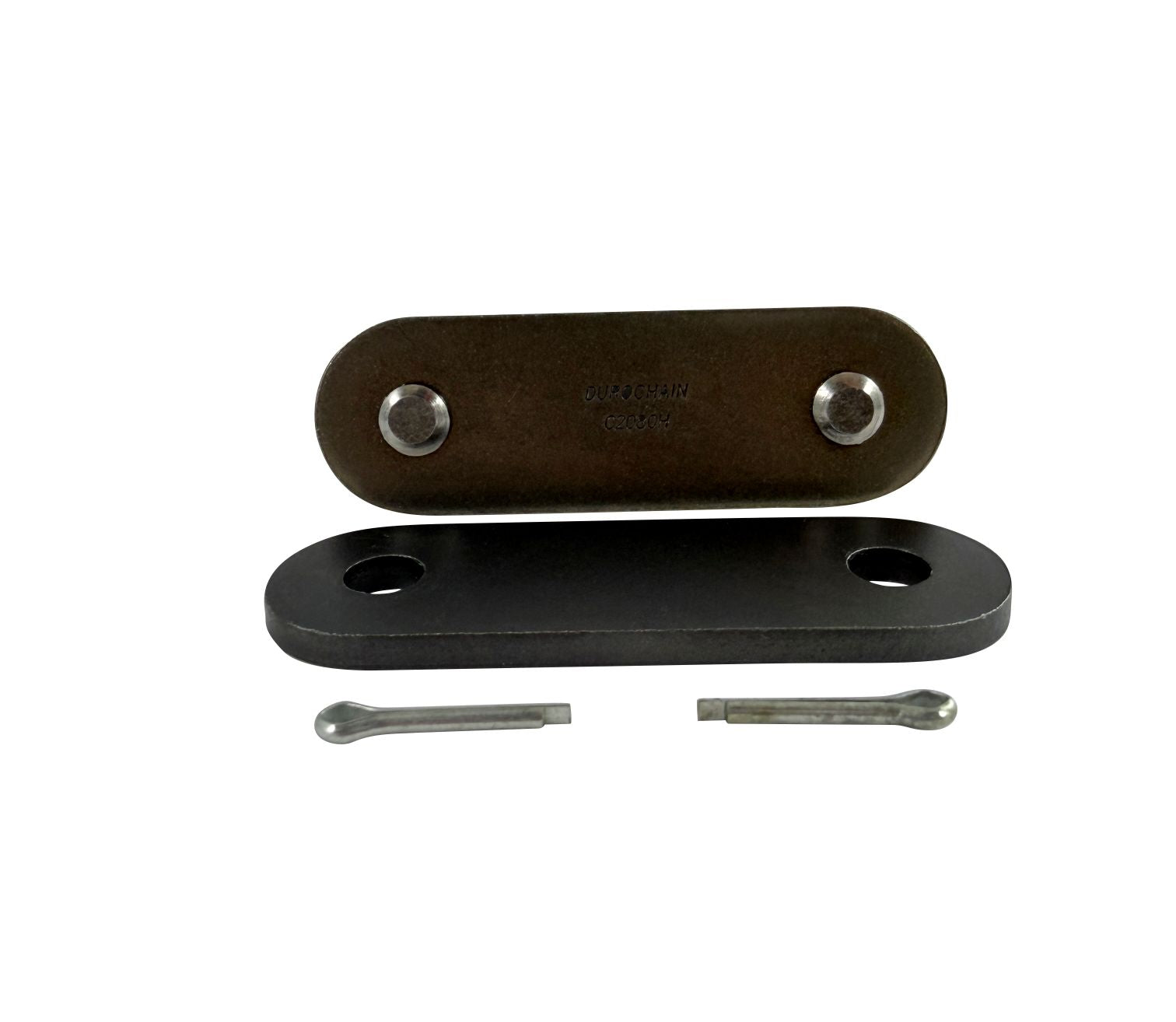

High-Strength Cotter Pin
The high-strength cotter pin retainer provides secure retention while allowing reliable installation, maintenance, and disassembly when needed.
Superior Plate Hole Preparation
Precision piercing, shaving, and ball drifting provide smooth installation, excellent pin-to-plate contact, and dependable holding power.
