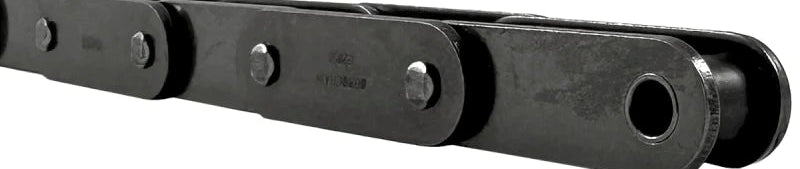

DUROCHAIN Premium C2052 Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Experience the DUROCHAIN Difference.

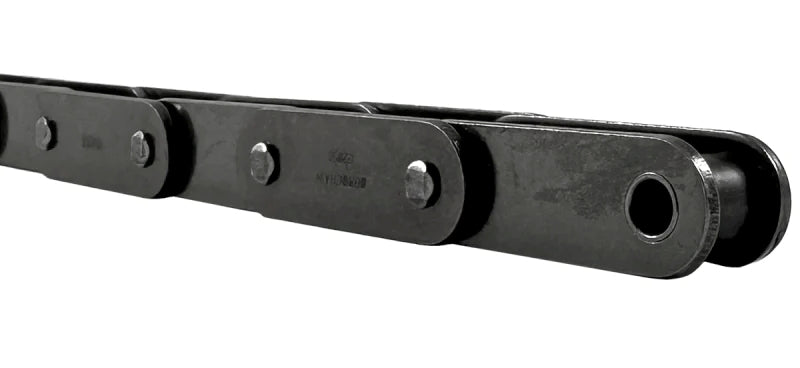

DUROCHAIN Premium #C2052 double pitch conveyor series roller chain is engineered for dependable performance in conveyor systems, material handling equipment, packaging machinery, agricultural equipment, and select drive applications. With an extended 1.250" pitch and narrow profile design, this chain is an excellent choice for long conveying runs requiring a high strength-to-weight ratio.
Built for rock-solid reliability and extended service life, every DUROCHAIN #C2052 roller chain is manufactured using premium carbon steel components, through-hardened pins, solid bushings, solid rollers, quad-staked rivets, precision-machined components, and factory-applied lubrication to help maximize wear life, shock load resistance, and overall operating performance.
Weighing approximately 0.89 lbs per foot with a minimum breaking strength of 4,894 lbs, DUROCHAIN #C2052 roller chain delivers dependable performance in demanding conveying and power transmission applications. It is commonly supplied in 10ft boxes, but we can also provide custom cut lengths to perfectly fit your application.
DUROCHAIN Premium C2052 Roller Chain Features
Through-Hardened Pins
DUROCHAIN pins are through-hardened for increased strength, improved wear resistance, and dependable performance throughout the service life of the chain.
Precision Solid Round Parts
Solid bushings and rollers provide consistent bearing surfaces to help reduce internal wear, improve energy transfer, and support longer-lasting chain performance.
Superior Plate Hole Preparation
Precision-prepared plate holes help promote accurate component fitment, reduce stress points, and improve overall fatigue resistance in demanding applications.
Quad-Staked Rivets
High-hold quad-staked rivets help improve chain integrity under shock loads, side thrust, and demanding operating conditions.
Factory Preload
Factory preloading helps seat chain components before installation, reducing initial elongation and helping the chain settle in faster once installed.
DUROCHAIN C2052 Roller Chain Specifications
- Part #: C2052
- Pitch (P): 1.250"
- Roller Width (R): 0.370"
- Roller Diameter (D): 0.750"
- Overall Width (W): 0.858"
- Connecting Link Overall Width (X): 1.020"
- Plate Height (H): 0.570"
- Pin Diameter (L): 0.200"
- Minimum Breaking Load: 4,894 LBS
- Weight Per Foot: 0.89 LBS
