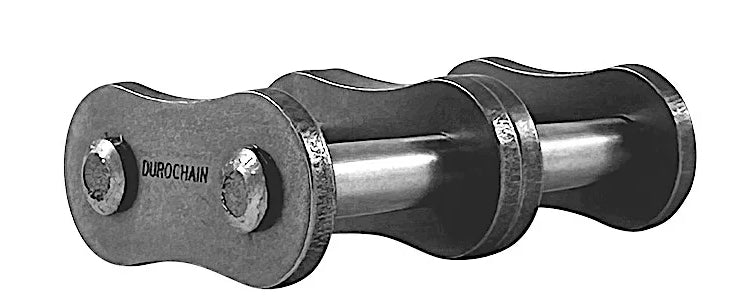

DUROCHAIN Premium #35-2 Connecting Link
Experience the DUROCHAIN Difference
DUROCHAIN Premium ANSI #35-2 Connecting Links are precision manufactured for secure installation, dependable retention, and long-term durability in many demanding roller chain applications. Designed specifically for double-strand (Duplex) #35-2 roller chain, this connecting link allows fast chain assembly, easy maintenance, and reliable field repairs.
Commonly used in industrial power transmission, agricultural equipment, packaging machinery, conveyors, and general OEM applications, DUROCHAIN #35-2 connecting links deliver premium performance where reliability matters most.
DUROCHAIN Premium #35-2 Connecting Link Features
Hardened High-Strength Pins
DUROCHAIN connecting link pins undergo a specialized hardening process to help improve wear life, strength, and fatigue resistance in demanding applications.
Max Contour Side Plates
Precision-made alloy steel side plates provide excellent shock load absorption and increased wear life while maintaining ANSI dimensional requirements.
Unique Rivets
DUROCHAIN connecting links feature a unique rivet design that helps improve shock load resistance, side thrust capability, and overall link integrity in demanding applications.
High-Hold Spring Clip
The precision-formed spring clip provides secure retention while allowing quick installation, maintenance, and disassembly when needed.
Superior Plate Hole Preparation
Precision piercing, shaving, and ball drifting provide smooth installation, excellent pin-to-plate contact, and dependable holding power.
DUROCHAIN #35-2 Connecting Link Specifications
- Part #: #35-2 C/L
- Pitch (P): 0.375"
- Connecting Link Overall Width (X): 0.916"
- Plate Height (H): 0.356"
- Plate Thickness (T): 0.050"
- Pin Diameter (L): 0.058"
