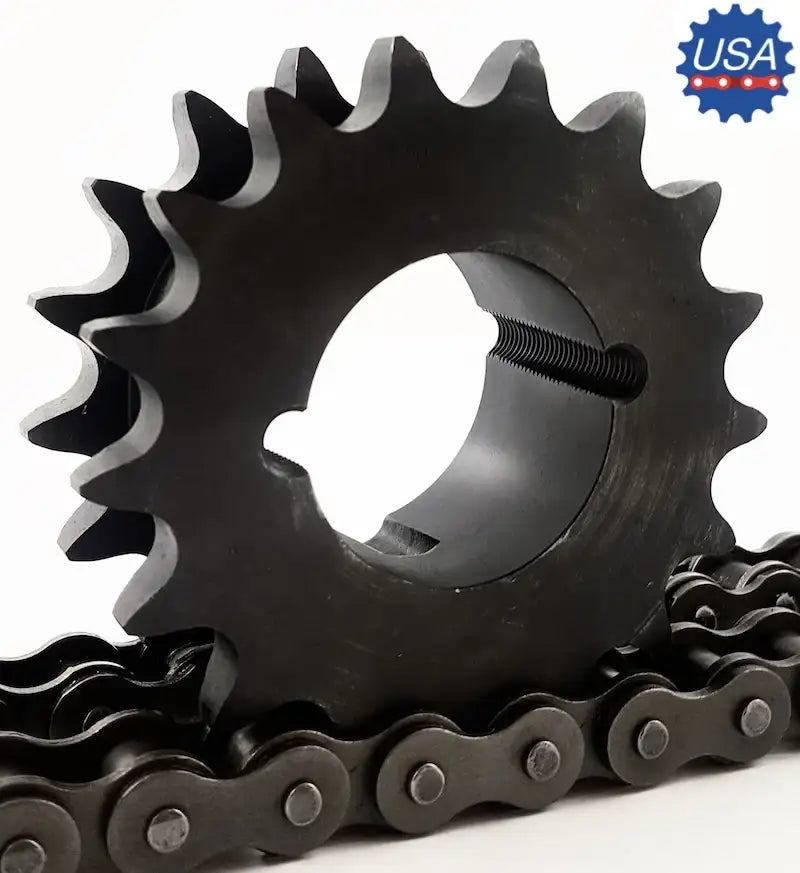

DS80ATL22 Sprocket (Double Single)

Power Transmission > Sprockets > Roller Chain Sprockets > Multi Strand Roller Chain Sprockets > Double Roller Chain Sprockets > #80-2 Double Sprockets > #80 Double-Single Sprockets

DS80ATL22 Sprocket (Double Single)

Note: Custom Cut to Length Chain Also Available
$212.99
SKU: DS80ATL22-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51715092513135" , "metafield_value":""}]
DS80ATL22 Sprocket (Double Single) Features
DS80ATL22 Sprocket (Double Single) Specifications
This DS80ATL22 sprocket is a durable, high quality, and precision double single sprocket with 22 hardened teeth that is manufactured to accept a 3020 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #80-1 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. DS80ATL22 sprockets are made to accept a 3020 size taper bushing and run a #80-1 roller chain side-by-side which we stock as well. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information, custom quotes, or other components please contact us and we will be happy to assist you.


Dimensions:
DS80ATL22 Sprocket (Double Single)
  • Sprocket Size: DS80ATL22
  • Tooth Count: 22
  • Bushing Size: 3020
  • Outside Diameter: 7.560"
  • Pitch Diameter: 7.027"
  • Dimension (L1): 2-3/16"
  • Dimension (C): 1-5/8"
  • Dimension (E): 5-59/64"
  • Dimension (L2): 2"
  • Dimension (W): 0.575"
  • Sprocket Weight: 13.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: DS80ATL22
  • Tooth Count: 22
  • Bushing Size: 3020
  • Outside Diameter: 7.560"
  • Pitch Diameter: 7.027"
  • Dimension (L1): 2-3/16"
  • Dimension (C): 1-5/8"
  • Dimension (E): 5-59/64"
  • Dimension (L2): 2"
  • Dimension (W): 0.575"
  • Sprocket Weight: 13.0 LBS
