Power Transmission > Sprockets > Roller Chain Sprockets > Double Single Sprockets > #40 Double Single Sprockets
DS40A15 Sprocket (Double Single)
Note:
Custom Cut to Length Chain Also Available
$27.99
SKU: DS40A15-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
DS40A15 Sprocket (Double Single) Features
DS40A15 Sprocket (Double Single) Specifications

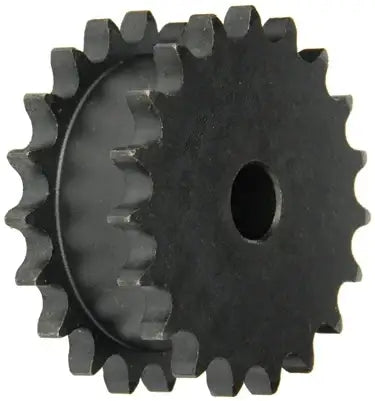

This DS40A15 sprocket is a durable, high quality, and precision double single sprocket with 15 hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40 roller chain and sprocket thus preventing premature wear or breakage. This double single sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. DS40A15 sprockets with a stock bore are supplied with a standard 1/2" inside diameter hole with no keyway or set screws and can be easily machine bored to custom sizes. If you are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: DS40A15
- Tooth Count: 15
- Outside Diameter: 2.650"
- Pitch Diameter: 2.405"
- Sprocket Type: A
- Stock Bore Size: 1/2"
- Maximum Bore: 1-1/4"
- Dimension (L): 1-13/32"
- Dimension (C): 1-1/8"
- Dimension (E): 1-13/16"
- Dimension (W): 0.284"
- Sprocket Weight: 1.2 LBS
Phone: (407) 347-3519
Email: sales@usarollerchain.com
- Sprocket Size: DS40A15
- Tooth Count: 15
- Outside Diameter: 2.650"
- Pitch Diameter: 2.405"
- Sprocket Type: A
- Stock Bore Size: 1/2"
- Maximum Bore: 1-1/4"
- Dimension (L): 1-13/32"
- Dimension (C): 1-1/8"
- Dimension (E): 1-13/16"
- Dimension (W): 0.284"
- Sprocket Weight: 1.2 LBS
