DS20ATB15H Sprocket
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.

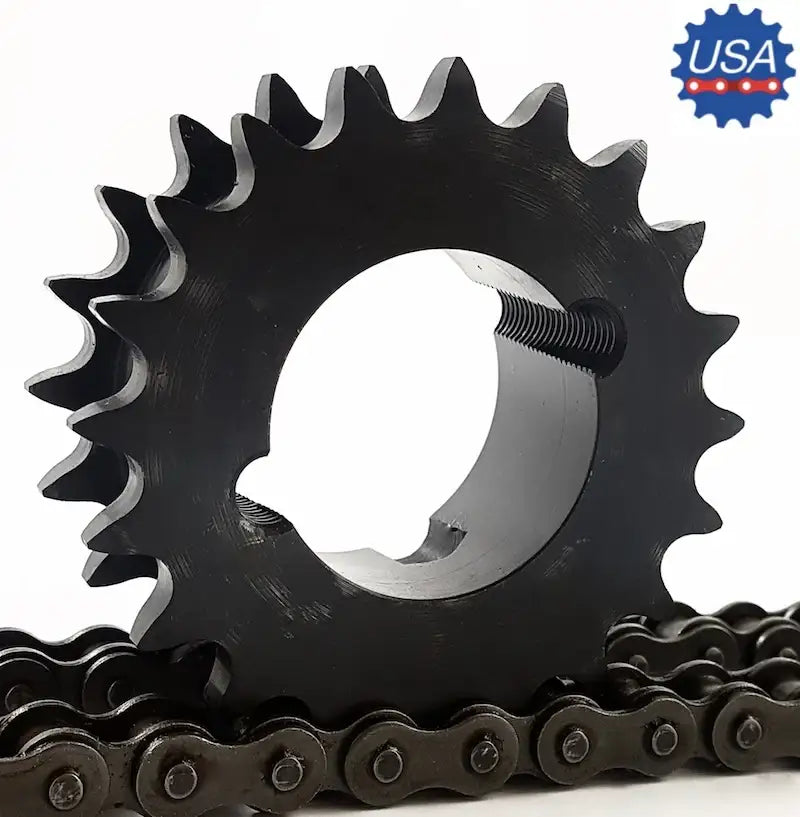

- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: DS20ATB15H-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
DS20ATB15H Sprocket Description/Features
DS20ATB15H Sprocket Specifications
DS20ATB15H Sprocket is a double single taper bushed 15-tooth metric roller chain sprocket made for 20B-1 roller chain. Double single DS20ATB15H sprockets are made to run two single-strands of roller chain parallel to each other and utilizes a 2517 taper bushing. Specifically, this sprocket is manufactured in accordance with ISO, DIN, and British Standards so it directly interchanges with previous sprockets in the application along with other manufacture brands. Utilizing premium grade alloy steel and precision machining our DS20ATB15H sprocket exceeds in performance, durability, and working life.
Besides the metric double single sprocket, we also supply 2517 bushings, 20B roller chain, electric motors, gear reducers, and a plethora of roller chain accessories. For more information or to get a quote please contact us and we will be happy to assist you.
DS20ATB15H Sprocket Dimensions
- Sprocket Size: DS20ATB15H
- Tooth Count: 15
- Bushing Size: 2517
- Outside Diameter: 167.90mm
- Pitch Diameter: 152.72mm
- Minimum Bore: 16mm
- Maximum Recommended Bore: 60mm
- Sprocket Type: ATB
- Dimension (L1): 68.3mm
- Dimension (C): 49.8mm
- Dimension (E): 115.0mm
- Dimension (L2): 44.5mm
- Dimension (F): 18.5mm
- Sprocket Weight: 4.20 kG
Besides the metric double single sprocket, we also supply 2517 bushings, 20B roller chain, electric motors, gear reducers, and a plethora of roller chain accessories. For more information or to get a quote please contact us and we will be happy to assist you.
- Sprocket Size: DS20ATB15H
- Tooth Count: 15
- Bushing Size: 2517
- Outside Diameter: 167.90mm
- Pitch Diameter: 152.72mm
- Minimum Bore: 16mm
- Maximum Recommended Bore: 60mm
- Sprocket Type: ATB
- Dimension (L1): 68.3mm
- Dimension (C): 49.8mm
- Dimension (E): 115.0mm
- Dimension (L2): 44.5mm
- Dimension (F): 18.5mm
- Sprocket Weight: 4.20 kG
