DS16ATB23H Sprocket
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: DS16ATB23H-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
DS16ATB23H Sprocket Description/Features
DS16ATB23H Sprocket Specifications

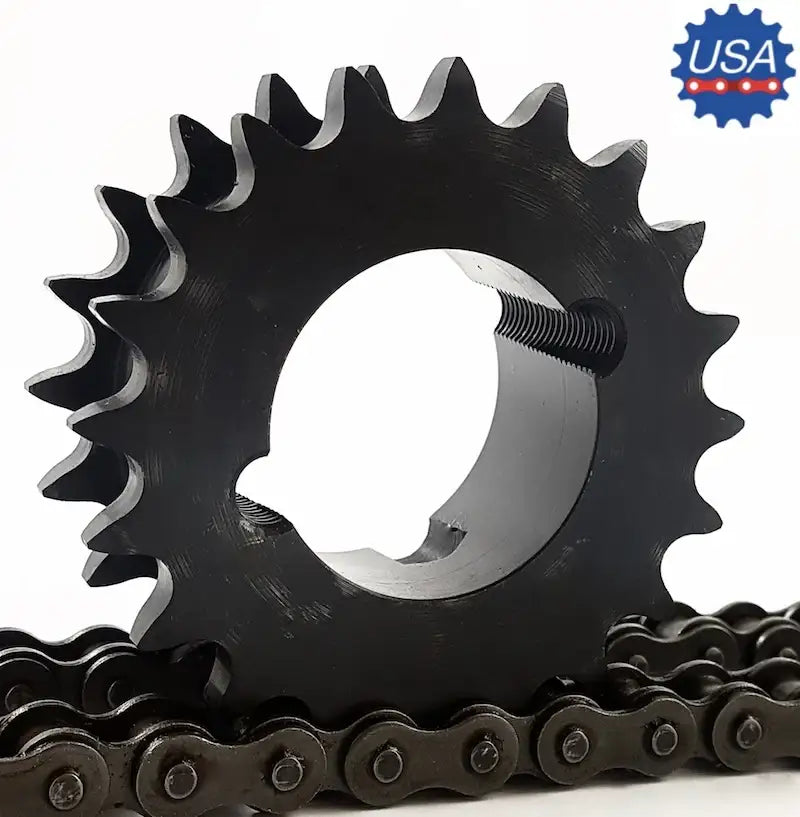

DS16ATB23H Sprocket is a double single taper bushed 23-tooth metric roller chain sprocket made for 16B-1 roller chain. Double single DS16ATB23H sprockets are made to run two single-strands of roller chain parallel to each other and utilizes a 3525 taper bushing. Specifically, this sprocket is manufactured in accordance with ISO, DIN, and British Standards so it directly interchanges with previous sprockets in the application along with other manufacture brands. Utilizing premium grade alloy steel and precision machining our DS16ATB23H sprocket exceeds in performance, durability, and working life.
Besides the metric double single sprocket, we also supply 3525 bushings, 16B roller chain, electric motors, gear reducers, and a plethora of roller chain accessories. For more information or to get a quote please contact us and we will be happy to assist you.
DS16ATB23H Sprocket Dimensions
- Sprocket Size: DS16ATB23H
- Tooth Count: 23
- Bushing Size: 3525
- Outside Diameter: 197.50mm
- Pitch Diameter: 186.59mm
- Minimum Bore: 35mm
- Maximum Recommended Bore: 90mm
- Sprocket Type: ATB
- Dimension (L1): 63.5mm
- Dimension (C): 46.50mm
- Dimension (E): 160.0mm
- Dimension (L2): 63.5mm
- Dimension (F): 16.2mm
- Sprocket Weight: 7.15 kG
Besides the metric double single sprocket, we also supply 3525 bushings, 16B roller chain, electric motors, gear reducers, and a plethora of roller chain accessories. For more information or to get a quote please contact us and we will be happy to assist you.
- Sprocket Size: DS16ATB23H
- Tooth Count: 23
- Bushing Size: 3525
- Outside Diameter: 197.50mm
- Pitch Diameter: 186.59mm
- Minimum Bore: 35mm
- Maximum Recommended Bore: 90mm
- Sprocket Type: ATB
- Dimension (L1): 63.5mm
- Dimension (C): 46.50mm
- Dimension (E): 160.0mm
- Dimension (L2): 63.5mm
- Dimension (F): 16.2mm
- Sprocket Weight: 7.15 kG
