Specialty Chain > Table Top Chain > Slat Top Plastic Chain > 820 Slat Top Plastic Chain
D820 K400 Table Top Chain
Note:
Custom Cut to Length Chain Also Available
SKU: D820-K400-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
D820 K400 Table Top Chain Features
D820 K400 Table Top Chain Specifications

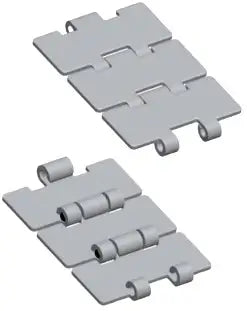

D820 K400 Table Top Chain is a premium quality chain that is 4.00" wide, self lubricating, and is available in a white or grey color. The benefits of this chain is that it is manufactured out of polymers with self lubricating properties that offers a higher friction than that of the LF or SLF type materials. The D820 K400 chain that we have is manufactured to be high strength, have great performance, and extreme durability. It uses 304-grade stainless steel pins and is standardly supplied as 10ft boxes (80-Links). We can supply this chain in other colors besides the grey and white upon request, as well as with rubber top attachments on the chain.
Besides the D820 K400 table top chain, we also have a full line of 820 series sprockets available from stock. The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.
In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on D820 K400 chain, sprockets, or other products please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Click Here To See Our Other Products!
D820 K400 Chain Dimensions
Chain Size: D820 K400 Pitch (P): 1.50" Backflex Radius: 3.00" Tensile Strength: 450 LBS Width (W): 4.00" Chain Material: POM-D Color: Grey Pin Material: 304-SS Dimension (E): 0.25" Dimension (G): 1.75" Dimension (H): 0.37" Dimension (L): 0.28" Dimension (Q): 1.63" Dimension (T): 0.16" Chain Weight: 0.64 LBS/ FT
Besides the D820 K400 table top chain, we also have a full line of 820 series sprockets available from stock. The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.
|
|
Tooth Count | Overall Diameter |
|---|---|---|
| 19 | 4.61" | |
| 21 | 5.12" | |
| 23 | 5.59" | |
| 25 | 6.10" | |
| 27 | 6.57" | |
| 29 | 7.05" | |
| 31 | 7.56" | |
| 19 | 4.61" | |
| 21 | 5.12" | |
| 23 | 5.59" | |
| 25 | 6.10" |
In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on D820 K400 chain, sprockets, or other products please contact us and we will be happy to assist you.
Email:
Chain Size: D820 K400 Pitch (P): 1.50" Backflex Radius: 3.00" Tensile Strength: 450 LBS Width (W): 4.00" Chain Material: POM-D Color: Grey Pin Material: 304-SS Dimension (E): 0.25" Dimension (G): 1.75" Dimension (H): 0.37" Dimension (L): 0.28" Dimension (Q): 1.63" Dimension (T): 0.16" Chain Weight: 0.64 LBS/ FT
