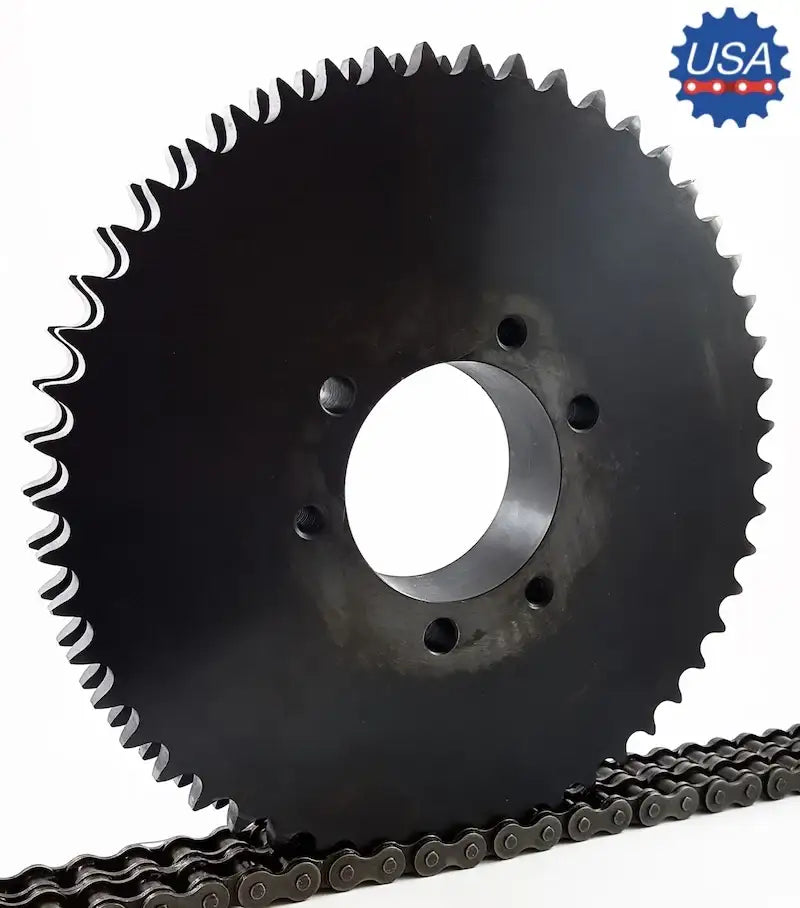

D80E76 Sprocket (QD Type)
Note:
Custom Cut to Length Chain Also Available
$2,259.99
SKU: D80E76-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
D80E76 Sprocket (QD Type) Features
D80E76 Sprocket (QD Type) Specifications
This D80E76 sprocket is a high-quality, precision, and durable QD type sprocket that has 76 teeth. D80E76 sprockets use an E-Type QD Bushing and are a solid construction sprocket. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #80-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. Along with the D80E76 sprocket, we offer a full line of premium E-Type QD bushings right off the shelf and at great pricing. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: D80E76
- Tooth Count: 76
- Bushing Type: E
- Outside Diameter: 24.780"
- Pitch Diameter: 24.198"
- Sprocket Type: C3
- Dimension (L1): 2-5/8"
- Dimension (L2): 2-15/16"
- Dimension (C): 6"
- Dimension (Y): 51/64"
- Dimension (P): 1/8"
- Dimension (V): 3/32"
- Dimension (X): 1-5/8"
- Dimension (T): 0.557"
- Dimension (W): 1.710"
- Bushing Weight: 10.0 LBS
- Sprocket Weight: 90.1 LBS
Email:
- Sprocket Size: D80E76
- Tooth Count: 76
- Bushing Type: E
- Outside Diameter: 24.780"
- Pitch Diameter: 24.198"
- Sprocket Type: C3
- Dimension (L1): 2-5/8"
- Dimension (L2): 2-15/16"
- Dimension (C): 6"
- Dimension (Y): 51/64"
- Dimension (P): 1/8"
- Dimension (V): 3/32"
- Dimension (X): 1-5/8"
- Dimension (T): 0.557"
- Dimension (W): 1.710"
- Bushing Weight: 10.0 LBS
- Sprocket Weight: 90.1 LBS
