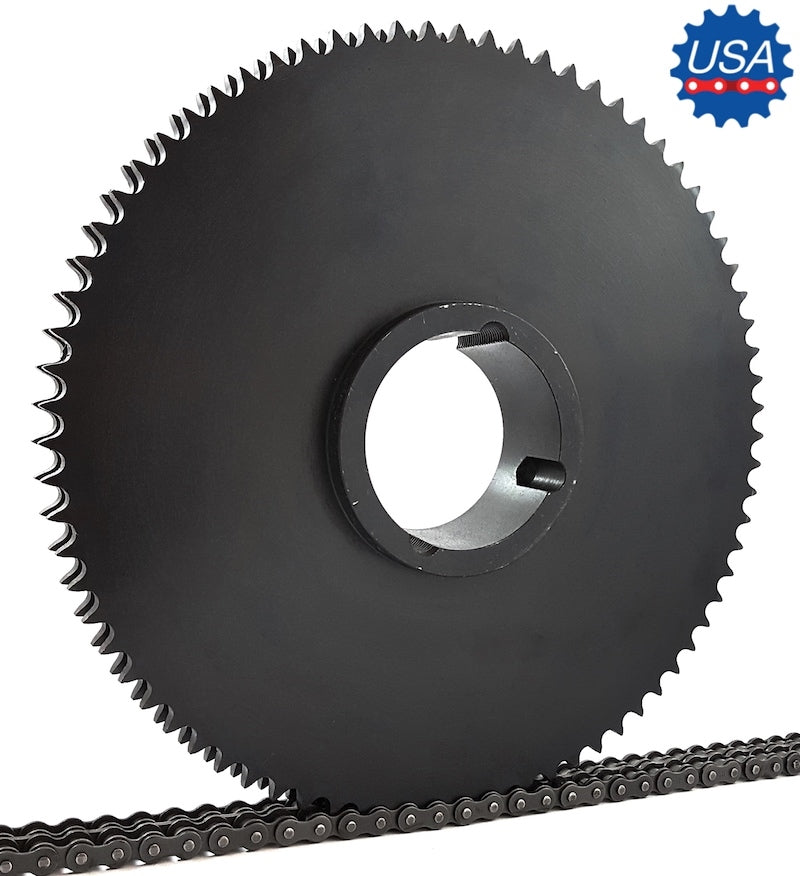

D80CTB95 Sprocket (Taper Bushed)

Name: D80CTB95 Sprocket (Taper Bushed)
Brand: USA ROLLER CHAIN
SKU: D80CTB95-SPROCKET
Price: 4784.99 USD
Availability: InStock

$4,784.99

SKU: D80CTB95-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Request a Quote

Don’t see what you need? In a rush?

Call us!

D80CTB95 Sprocket (Taper Bushed) Description/Features

D80CTB95 Sprocket (Taper Bushed) Specifications

This D80CTB95 sprocket is a durable, high quality, and precision double sprocket with 95 high-strength teeth that is manufactured to accept a 3020 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #80-2 double roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. D80CTB95 sprockets are made to accept a 3020 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

Dimensions:

Sprocket Size: D80CTB95
Tooth Count: 95
Bushing Size: 3020
Outside Diameter: 30.828"
Pitch Diameter: 30.245"
Dimension (L): 2"
Dimension (C): 5-1/4"
Sprocket Type: C1
Bushing Weight: 6.5 LBS
Sprocket Weight: 112.0 LBS
