D40P22 Sprocket (Taper Bushed)
Home > Power Transmission > Sprockets > Roller Chain Sprockets > D40P22 Sprocket (Taper Bushed)

D40P22 Sprocket (Taper Bushed)

Note: Contact Us For Large Quantity Request
$61.99
SKU: D40P22-SPROCKET
In stockOnly 0 left in stockBackordered Out of stock Item is unavailable
Quantity
Request a Quote
<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

Call us!

Buy it With:

 [{"variant_id":"51715053650287" , "metafield_value":""}]
D40P22 Sprocket (Taper Bushed) Description/Features
D40P22 Sprocket (Taper Bushed) Specifications

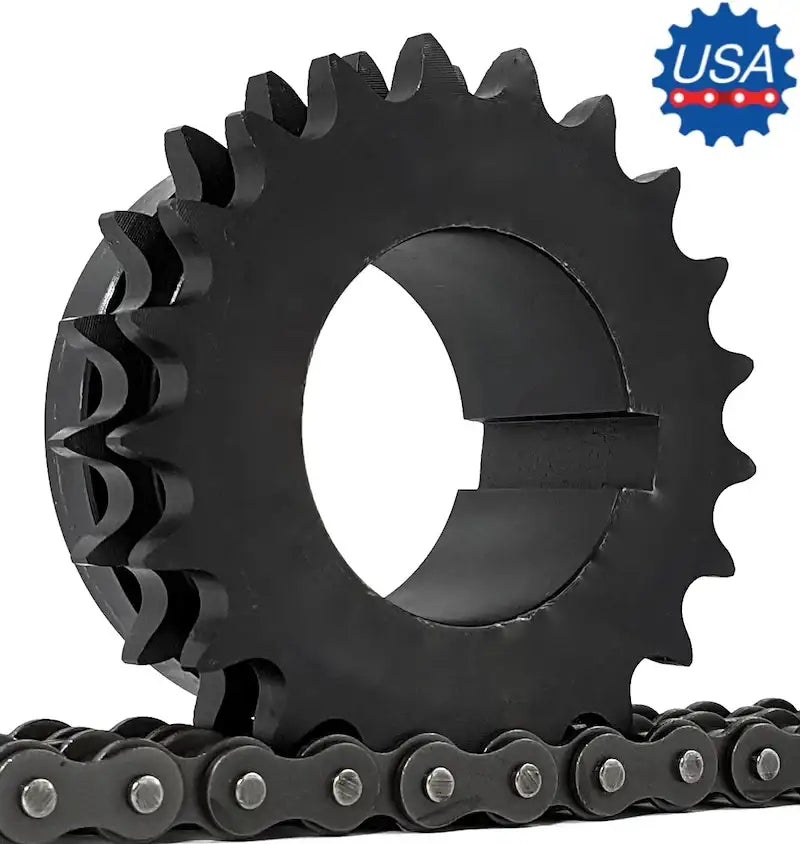

This D40P22 sprocket is a durable, high quality, and precision double sprocket with hardened teeth that is manufactured to accept a P1 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40-2 double roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. D40P22 sprockets are made to accept a P1 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

Dimensions:
D40P22 Sprocket (Taper Bushed)
  • Sprocket Size: D40P22
  • Tooth Count: 22
  • Bushing Type: P1
  • Outside Diameter: 3.780"
  • Pitch Diameter: 3.513"
  • Dimension (OL): 2-13/32"
  • Dimension (L): 1-15/16"
  • Dimension (C): 7/32"
  • Dimension (H): 3"
  • Dimension (P): 1-3/8"
  • Dimension (T): 0.275"
  • Sprocket Weight: 2.0 LBS
  • Weight With Bushing: 3.3 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: D40P22
  • Tooth Count: 22
  • Bushing Type: P1
  • Outside Diameter: 3.780"
  • Pitch Diameter: 3.513"
  • Dimension (OL): 2-13/32"
  • Dimension (L): 1-15/16"
  • Dimension (C): 7/32"
  • Dimension (H): 3"
  • Dimension (P): 1-3/8"
  • Dimension (T): 0.275"
  • Sprocket Weight: 2.0 LBS
  • Weight With Bushing: 3.3 LBS
