D40BS40 Sprocket With 1-3/16" Finished Bore

Name: D40BS40 Sprocket With 1-3/16" Finished Bore
Brand: USA ROLLER CHAIN
SKU: D40BS40-1-316-SPROCKET
Availability: InStock

Note: Contact Us For Large Quantity Request

SKU: D40BS40-1-316-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

D40BS40 Sprocket With 1-3/16" Finished Bore Description/Features

D40BS40 Sprocket With 1-3/16" Finished Bore Specifications

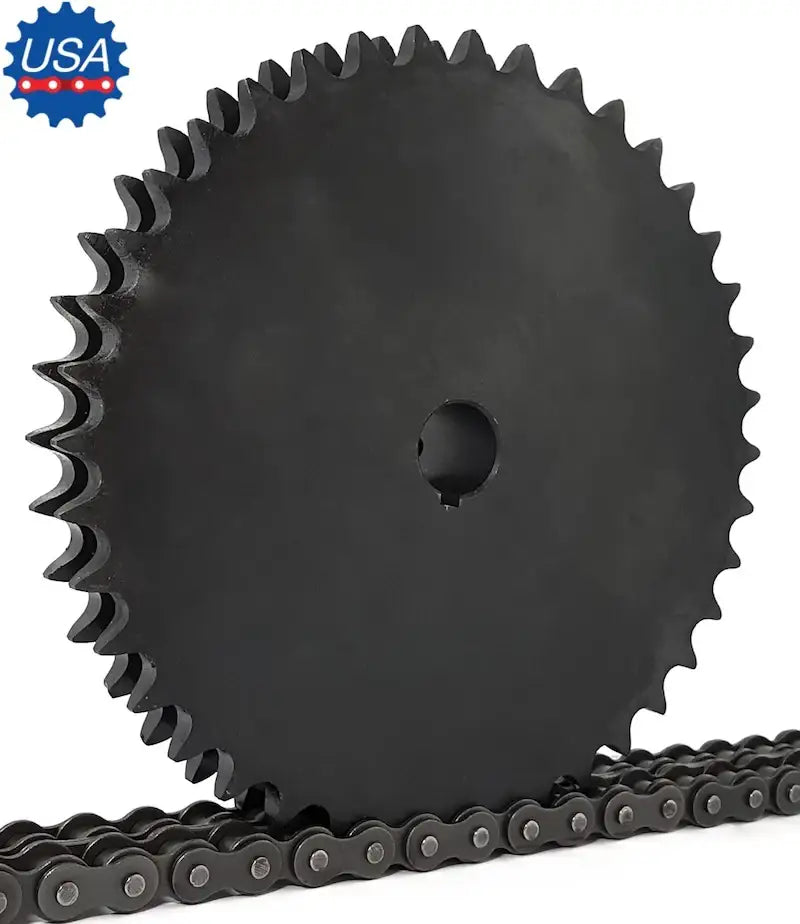

This D40BS40 sprocket is a durable, premium quality, and precision double sprocket that is supplied with a 1-3/16" finished bore which includes a key-way and two set screws. This double sprocket is manufactured for optimum performance, durability, and to strict quality control standards. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40-2 double roller chain and sprocket thus preventing premature wear or breakage. It is also black oxide coated which increases resistance to the environment and will prevent early rust build up. If you don't see the finished bore size you need and are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.

Dimensions:

Sprocket Size: D40BS40
Tooth Count: 40
Outside Diameter: 6.650"
Hub Type: B
Bore Size: 1-3/16"
Hub Diameter: 3-3/4"
Length Thru Bore: 1-3/4"
Weight: 9.40 LBS
Interchanges: D40BS40, D40BS40H, HD40BS40
