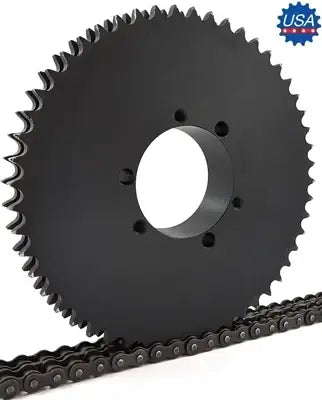

D35SDS76 Sprocket (QD Type)
Note:
Custom Cut to Length Chain Also Available
SKU: D35SDS76-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
D35SDS76 Sprocket (QD Type) Features
This D35SDS76 sprocket is a durable, high quality, and precision double sprocket that is manufactured to accept an SDS Bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which ensures proper contact between the #35-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. D35SDS68 sprockets are made to accept an SDS size QD bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.
D35SDS76 Sprocket Dimensions
D35SDS76 Sprocket Dimensions
- Sprocket Size: D35SDS76
- Tooth Count: 76
- Bushing Used: SDS
- Outside Diameter: 9.290"
- Pitch Diameter: 9.074"
- Maximum Bushing Bore: 2"
- Dimension (L1): 1-1/2"
- Dimension (L2): 1-1/2"
- Dimension (C): 3-3/16"
- Dimension (Y): 9/16"
- Dimension (P): 3/16"
- Dimension (X): 3/4"
- Dimension (T): 0.162"
- Dimension (W): 0.561"
- Sprocket Type: C
- Sprocket Weight: 9.32 LBS
- Bushing Weight: 1.0 LBS
