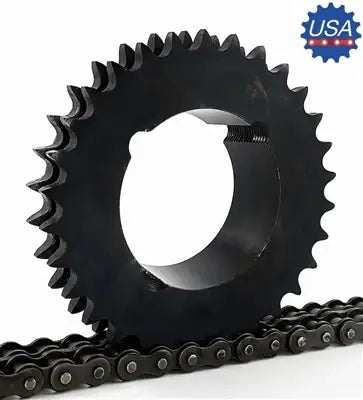

D35BTB26 Sprocket (Taper Bushed)

This D35BTB26 sprocket is a durable, high quality, and precision double sprocket with hardened teeth that is manufactured to accept a 1210 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which ensures proper contact between the #35-2 double roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. D35BTB26 sprockets are made to accept a 1210 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

D35BTB26 Sprocket Dimensions

• Sprocket Size: D35BTB26
• Tooth Count: 26
• Bushing Used: 1210
• Outside Diameter: 3.314"
• Pitch Diameter: 3.111"
• Maximum Bushing Bore: 1-1/4"
• Dimension (L): 1"
• Dimension (C): 2-5/8"
• Sprocket Type: B
• Sprocket Weight: 2.0 LBS
• Bushing Weight: 0.6 LBS
• Alternative Part #: D35BTB26
