• D120U60 Sprocket (Taper Bushed)
1 1

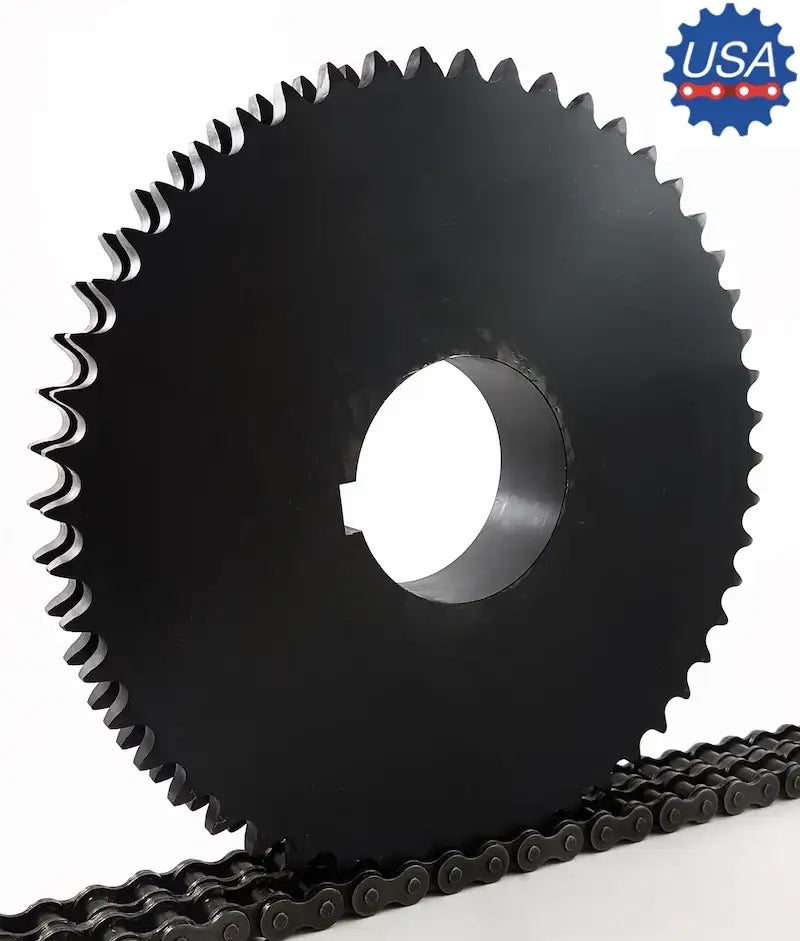

D120U60 Sprocket (Taper Bushed)

D120U60 Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
Product Code: D120U60-SPROCKET
Shipping calculated at checkout.
Other Customers Viewed
120-2 Roller Chain - 10ft
120-2 Roller Chain - 10ft
Login
General Duty Plus #120-2 Roller Chain - 10ft Box
General Duty Plus #120-2 Roller Chain - 10ft Box
$709.99
Login
Premium #120-2 Roller Chain - 10ft Box | Premier Series Chain
Premium #120-2 Roller Chain - 10ft Box | Premier Series Chain
$1,359.99
Login
View full details
Description
Specification
This D120U60 sprocket is a durable, high quality, and precision double sprocket with 60 teeth that is manufactured to accept a U0 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #120-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. Besides the D120U60 sprocket we have a full line of premium U0 bushings right off the shelf. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities of providing those as well. For more information please contact us and we will be happy to assist you.

Dimensions:
D120U60 Sprocket (Taper Bushed)
  • Sprocket Size: D120U60
  • Tooth Count: 60
  • Bushing Size: U0
  • Outside diameter: 29.520"
  • Pitch Diameter: 28.661"
  • Sprocket Type: 15
  • Maximum Bore: 5-1/2"
  • Dimension (OL): 5-23/32"
  • Dimension (L): 5-1/4"
  • Dimension (C): 1-9/32"
  • Dimension (H): 8-3/8"
  • Dimension (P): 19/32"
  • Dimension (T): 0.894"
  • Bushing Weight: 27.0 LBS
  • Sprocket Weight: 183.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • Premium Double Sprocket
  • Fully Meets ANSI Standards
  • Black Oxide Coated
  • Extremely Durable
  • High Performance Sprocket
Featured image
  • Sprocket Size: D120U60
  • Tooth Count: 60
  • Bushing Size: U0
  • Outside diameter: 29.520"
  • Pitch Diameter: 28.661"
  • Sprocket Type: 15
  • Maximum Bore: 5-1/2"
  • Dimension (OL): 5-23/32"
  • Dimension (L): 5-1/4"
  • Dimension (C): 1-9/32"
  • Dimension (H): 8-3/8"
  • Dimension (P): 19/32"
  • Dimension (T): 0.894"
  • Bushing Weight: 27.0 LBS
  • Sprocket Weight: 183.0 LBS
