D120J45 Sprocket (QD Type)

Power Transmission > Sprockets > Roller Chain Sprockets > Multi Strand Roller Chain Sprockets > Double Roller Chain Sprockets > #120-2 Double Sprockets > #120-2 J-Type Sprockets

D120J45 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
SKU: D120J45-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715032744303" , "metafield_value":""}]
D120J45 Sprocket (QD Type) Features
D120J45 Sprocket (QD Type) Specifications

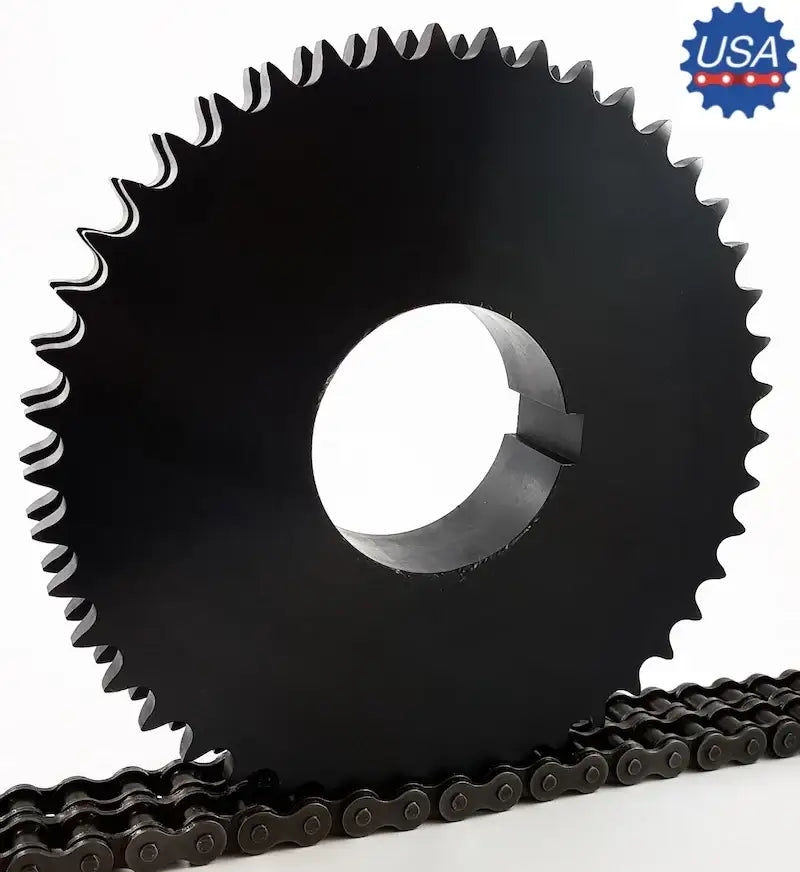

This D120J45 sprocket is a high-quality, precision, and durable QD type sprocket that has 45 teeth. D120J45 sprockets use an J-Type QD Bushing and are a solid construction sprocket. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #120-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. Along with the D120J45 sprocket, we offer a full line of premium J-Type QD bushings right off the shelf and at great pricing. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.


Dimensions:
D120J45 Sprocket (QD Type)
  • Sprocket Size: D120J45
  • Tooth Count: 45
  • Bushing Type: J
  • Outside Diameter: 22.350"
  • Pitch Diameter: 21.520"
  • Sprocket Type: C5
  • Maximum Bore: 4-7/16"
  • Dimension (L1): 4-1/2"
  • Dimension (L2): 5"
  • Dimension (C): 7-1/4"
  • Dimension (Y): 1-1/32"
  • Dimension (P): 25/32"
  • Dimension (G): 21/32"
  • Dimension (V): 5/32"
  • Dimension (X): 3-3/16"
  • Dimension (T): 0.894"
  • Dimension (W): 2.683"
  • Bushing Weight: 18.0 LBS
  • Sprocket Weight: 138.0 LBS
Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!
  • Sprocket Size: D120J45
  • Tooth Count: 45
  • Bushing Type: J
  • Outside Diameter: 22.350"
  • Pitch Diameter: 21.520"
  • Sprocket Type: C5
  • Maximum Bore: 4-7/16"
  • Dimension (L1): 4-1/2"
  • Dimension (L2): 5"
  • Dimension (C): 7-1/4"
  • Dimension (Y): 1-1/32"
  • Dimension (P): 25/32"
  • Dimension (G): 21/32"
  • Dimension (V): 5/32"
  • Dimension (X): 3-3/16"
  • Dimension (T): 0.894"
  • Dimension (W): 2.683"
  • Bushing Weight: 18.0 LBS
  • Sprocket Weight: 138.0 LBS
    •
