Cleveland Gear CGSM2-15 Reducer
Note:
Custom Cut to Length Chain Also Available
SKU: CGSM2-15-REDUCER
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
Cleveland Gear CGSM2-15 Reducer Features
Cleveland Gear CGSM2-15 Reducer Specifications

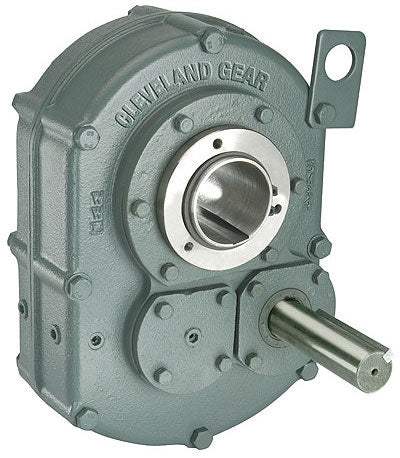

Cleveland Gear CGSM2-15 Reducer is a high strength and high quality 15:1 ratio shaft mount reducer. The Cleveland Gear brand reducers are suitable fro AGMA Class I, II, or III applications and use carburized, case hardened, and ground helical gearing. This CGSM2-15 Reducer also features alloy steel shafts with hardened and ground gear sets and bearing/ seal journals to maximize durability and extend operation life. The double lip spring loaded shaft seals keep oil in while keeping contents out, while the oversized bearings ensure a reliable working life in harsh applications. Then a high strength precision machined cast iron keeps everything protected and provides maximum support for shafts.
USA Roller Chain and Sprockets is a direct distributor for Cleveland Gear and has a highly knowledgeable sales team that is ready to assist you! We also have a full line of shaft mount reducer accessories and offer a wide range of industrial power transmission products. For additional information or to get a quote on a CGSM2-15 Reducer please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
CGSM2-15 Reducer Dimensions
Part #: CGSM2-15 Ratio: 15:1 Box Size: 2 Dimension (L): 8.38" Dimension (M): 11.41" Dimension (N): 7.32" Dimension (F): 1.125" Key: 0.25" X 0.125" X 0.250" Maximum Dimension (B): 1-15/16" Dimension (C): 1.25" Dimension (E): 4.06" Dimension (G): 2.22" Dimension (W): 1.06" Dimension (U): 1.25" Dimension (X): 3.68" Dimension (V): 2.89" Dimension (Q): 3.59" Dimension (Y): 1.40" Dimension (H): 4.56" Dimension (A1): 2.14" Dimension (A2): 4.32" Dimension (A3): 3.75" Dimension (h): 4.09" Minimum Dimension (R): 26.94" Maximum Dimension (R): 32.94" Dimension (P): 0.44" Dimension (T): 3.00" Gear Box Weight: 58 LBS
USA Roller Chain and Sprockets is a direct distributor for Cleveland Gear and has a highly knowledgeable sales team that is ready to assist you! We also have a full line of shaft mount reducer accessories and offer a wide range of industrial power transmission products. For additional information or to get a quote on a CGSM2-15 Reducer please contact us and we will be happy to assist you.
Email:
Part #: CGSM2-15 Ratio: 15:1 Box Size: 2 Dimension (L): 8.38" Dimension (M): 11.41" Dimension (N): 7.32" Dimension (F): 1.125" Key: 0.25" X 0.125" X 0.250" Maximum Dimension (B): 1-15/16" Dimension (C): 1.25" Dimension (E): 4.06" Dimension (G): 2.22" Dimension (W): 1.06" Dimension (U): 1.25" Dimension (X): 3.68" Dimension (V): 2.89" Dimension (Q): 3.59" Dimension (Y): 1.40" Dimension (H): 4.56" Dimension (A1): 2.14" Dimension (A2): 4.32" Dimension (A3): 3.75" Dimension (h): 4.09" Minimum Dimension (R): 26.94" Maximum Dimension (R): 32.94" Dimension (P): 0.44" Dimension (T): 3.00" Gear Box Weight: 58 LBS
