305617 New Idea Gathering Chain Replacement

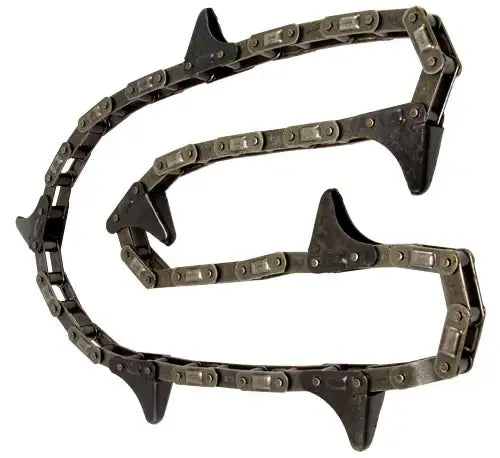

This 305617 corn head gathering chain assembly fits New Idea 319, 324, 325, 720 and 730 series corn head gathers. What separates this chain assembly from others is that it uses an extreme-duty CA550 chain that is assembled using special high-strength heat-treated components and features a solid roller design for increased performance and durability. It has six (6) C12E attachments/ gathering lugs that are spaced every 7.06" and it is 26 links long, which is 42.38" total. We can also supply sprockets, bearings, and other accessories that go to corn head gathers, combines, and other types of agricultural equipment.

305617 Chain Dimensions

CA550 Chain Dimensions

• Chain Size: CA550
• Pitch (P): 1.630"
• Roller Width (W): 0.797"
• Roller Diameter (D): 0.656"
• Overall Width Riveted (C): 1.420"
• Overall Width Cottered: 1.563"
• Link Plate Height (H): 0.750"
• Link Plate Thickness (T): 0.105"
• Pin Diameter (E): 0.281"
• Ultimate Strength: 11,250 LBS

Attachment/ Gathering Lug Dimensions

• Attachment #: CA550 C12E
• Dimension (C): 1.266"
• Angle (R): 9 Degrees
• Dimension (S): 2.375"
• Dimension (T): 0.105"
