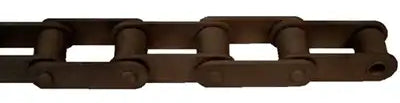

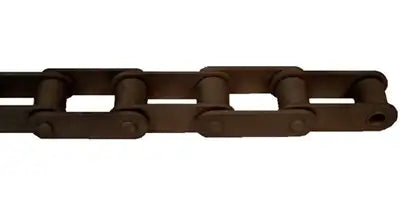

CA650 Roller Chain - Agricultural Chain
Note:
Custom Cut to Length Chain Also Available
SKU: CA650-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
CA650 Roller Chain - Agricultural Chain Features
CA650 Roller Chain - Agricultural Chain Specifications
CA650 roller chain is typically found in agricultural and conveying applications. This chain features solid rollers for increased performance and even load distribution, as well as heat-treated components for increased strength and shock load capability. Besides the chain we can also supply sprockets, bearings, shafting, and more! To get a quote or for more information please contact us and we will be happy to assist you.
CA650 Chain Dimensions
- Pitch (P): 50.80mm
- Roller Diameter (D): 19.05mm
- Dimension (W): 19.05mm
- Pin Diameter (E): 9.53mm
- Pin Length (C): 40.5mm
- Plate Height (H): 25.50mm
- Plate Thickness (T): 4.00mm
- Tensile Strength: 20,232 LBS
- Pitch (P): 50.80mm
- Roller Diameter (D): 19.05mm
- Dimension (W): 19.05mm
- Pin Diameter (E): 9.53mm
- Pin Length (C): 40.5mm
- Plate Height (H): 25.50mm
- Plate Thickness (T): 4.00mm
- Tensile Strength: 20,232 LBS
