C77 K1 Attachment

Specialty Chain > Engineering Class Chains > Cast Combination Chain > C77 Combination Chain

C77 K1 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: C77-K1-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714978906479" , "metafield_value":""}]
C77 K1 Attachment Features
C77 K1 Attachment Specifications
C77 K1 attachments are used in a wide range of applications including; bucket elevators, conveyors, flight conveyors, forest products, grain handling, sugar processing and more! This C77 K1 attachment has the capability to convey abrasive and non-abrasive materials, which greatly improves its range of applications. We can supply C77 chain with K1 attachments in any configuration needed. To get a quote or for additional information please contact us and we will be happy to assist you.

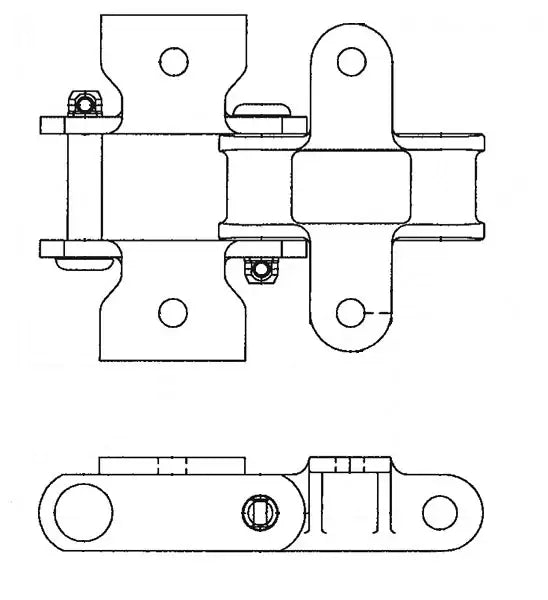

Dimensions:
C77 K1 Attachment
  • Attachment Number: C77 K1
  • Pitch: 2.308"
  • Bolt Diameter: 0.380"
  • Hole Diameter (D): 0.410"
  • Dimension (J): 0.660"
  • Dimension (K): 1.160"
  • Dimension (M): 3.000"
  • Dimension (R): 1.190"
  • Dimension (R1): 1.190"
  • Dimension (T): 0.220"
  • Dimension (T1): 0.190"
  • Dimension (W): 4.120"
  • Dimension (W1): 4.190"
  • Weight: 2.4 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Attachment Number: C77 K1
  • Pitch: 2.308"
  • Bolt Diameter: 0.380"
  • Hole Diameter (D): 0.410"
  • Dimension (J): 0.660"
  • Dimension (K): 1.160"
  • Dimension (M): 3.000"
  • Dimension (R): 1.190"
  • Dimension (R1): 1.190"
  • Dimension (T): 0.220"
  • Dimension (T1): 0.190"
  • Dimension (W): 4.120"
  • Dimension (W1): 4.190"
  • Weight: 2.4 LBS/ FT
