Leeson 3/4 HP Explosion Proof Motor 56C

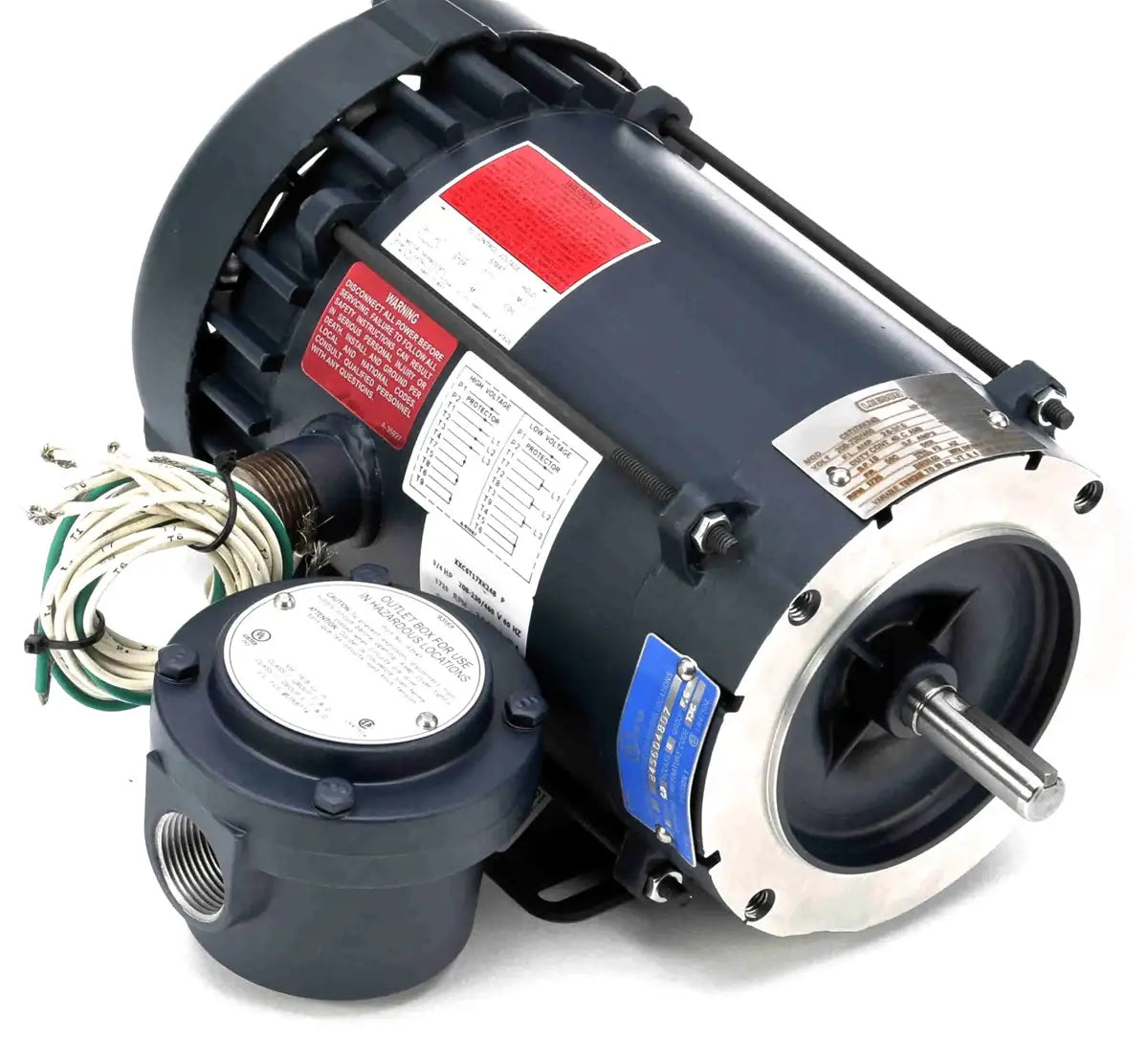

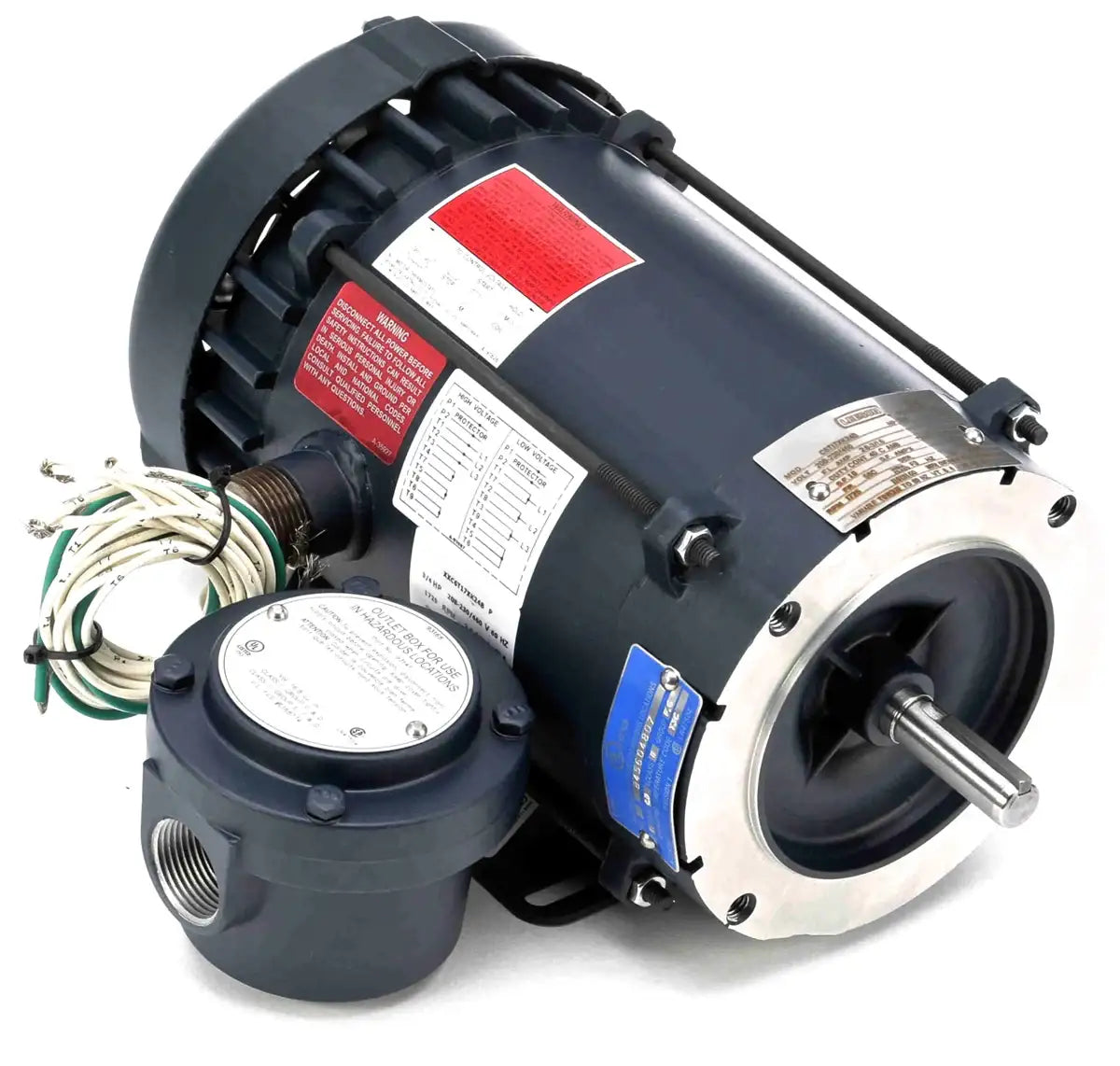

Leeson C6T17XK24 0.75 HP explosion proof electric motor is a three phase, 3600 RPM 56C frame size motor with a C-Face (with base). This hazardous application motor is rated for Division I and Division II, class I, groups C and D, as well as Class II Groups F and G. Being manufactured in accordance to National Electrical Manufacturers Association (NEMA) standard means that this electric motor will drop-in replace most of the common brands out there, and this motor even includes an explosion proof conduit box. More specifically, Leeson motors use a premium double-shielded ball bearing, has an industry leading warrantee, and meets all UL as well as CSA Safety Requirements. The C6T17XK24 (catalog # 116191.00) explosion proof motor uses T-Stats for overload protection for additional safety and ease of mind. When making a selection of an explosion proof motor it is important to select a motor that is approved for use in the specific class or group that defines the hazardous environment the motor will run in, refer to "Explosion Proof Motor Classification" on our main explosion proof motor main page for more information. For additional information or to get a quote on a Leeson Three-Phase 3/4 HP Explosion Proof Electric Motor, 1800 RPM, 56C Frame, C-Face (with base) please contact us and we will be happy to assist you.
- Download - C6T17XK24 Motor Connection
- Download - C6T17XK24 Motor Outline/ Drawing
- Download - C6T17XK24 Motor Certification
- Download - C6T17XK24 Motor Performance
- Download - C6T17XK24 Motor Operation Manual
- Download - C6T17XK24 Motor Complete Data Pack
C6T17XK24 General Information
|
UPC
|
Weight
|
Package Length
|
Package Width
|
Package Height
|
|---|---|---|---|---|
| 6917202062078 | 31.00 LB | 16.38 IN | 10.5 IN | 8.12 IN |
C6T17XK24 Nameplate Information
|
Output HP
|
Frequency
|
Current
|
Service Factor
|
Efficiency
|
|---|---|---|---|---|
| 0.75 Hp | 60 Hz | 2.9-3.0/1.5 A | 1 | 75.5 % |
| Duty | Design Code | Frame | Thermal Protection | Drive End Bearing Size |
| Continuous | B | 56C | Thermostats (N/C) | 6203 |
| UL | CE | Hazardous Location | Output KW | Voltage |
| UL Listed And CSA Certified | N | EXP PROOFCL I GR C&D CL II GR F&G T3C | 0.56 kW | 208-230/460 V |
| Speed | Phase | Power Factor | Insulation Class | KVA Code |
| 1725 rpm | 3 | 66.3 | F | L |
| Enclosure | Ambient Temperature | Opp Drive End Bearing Size | CSA | IP Code |
| Explosion Proof Fan cooled | 40 °C | 6203 | Y | 54 |
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C
C6T17XK24 Technical Information
| Electrical Type | Poles | Resistance Main | Motor Opperation |
|---|---|---|---|
| Squirrel Cage Inverter Rated | 4 | 23.2 Ohms | Horizontal |
| Opp Drive End Bearing | Shaft Type | Frame Length | Shaft Extension |
| Ball | NEMA 56 | 6.31 in | 1.88 in |
| Starting Method | Rotation | Mounting | Drive End Bearing |
| Line Or Inverter | Reversible | Rigid base | Ball |
| Frame Material | Overall Length | Shaft Diameter | Assembly/ Box Mounting |
| Rolled Steel | 13.44 in | 0.625 in | F1 ONLY |
C6T17XK24 Speed Characteristics
| Curve-Point | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (HP) |
|---|---|---|---|---|---|---|---|---|
| Pull-Up | 8.40 | 560.0 | 7.40 | 325.0 | 750 | - | - | 0.75 |
| 1/3 | 8.80 | 587.0 | 7.00 | 307.0 | 400 | - | - | 0.75 |
| Full Load | 1.50 | 100.0 | 2.28 | 100.0 | 1,725 | - | - | 0.75 |
| Break-Down | 6.00 | 400.0 | 10.00 | 439.0 | 1,230 | - | - | 0.75 |
| No Load | 1.00 | 67.0 | 0.00 | 0.0 | 1,800 | - | - | 0.75 |
| Locked-Rotor | 9.80 | 620.0 | 8.20 | 36.0 | 0 | 0.00 | 75.0 | 0.75 |
| 2/3 | 7.90 | 527.0 | 8.60 | 377.0 | 1,000 | - | - | 0.75 |
C6T17XK24 Load Characteristics
| % of Rated Load | 0% | 25% | 50% | 75% | 100% | 115% | 125% | 150% | 175% |
|---|---|---|---|---|---|---|---|---|---|
| Current (Amps) | 1.00 | 1.10 | 1.15 | 1.25 | 1.50 | 1.55 | 1.60 | 1.70 | 2.00 |
| Rated Output (KW) | 0.10 | 0.24 | 0.40 | 0.55 | 0.75 | 0.85 | 0.88 | 1.10 | 1.30 |
| Efficiency (%) | 0.0 | 55.5 | 71.0 | 74.5 | 75.5 | 76.5 | 77.5 | 78.5 | 78.0 |
| Power Factor (%) | 11.5 | 29.0 | 45.5 | 57.0 | 66.3 | 71.0 | 73.0 | 78.0 | 81.0 |
| Speed (RPM) | 1,800 | 1,785 | 1,770 | 1,750 | 1,725 | 1,722 | 1,720 | 1,715 | 1,695 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 45.0 | 55.0 | 70.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 0.52 | 1.10 | 1.70 | 2.28 | 2.60 | 2.80 | 3.50 | 4.10 |
