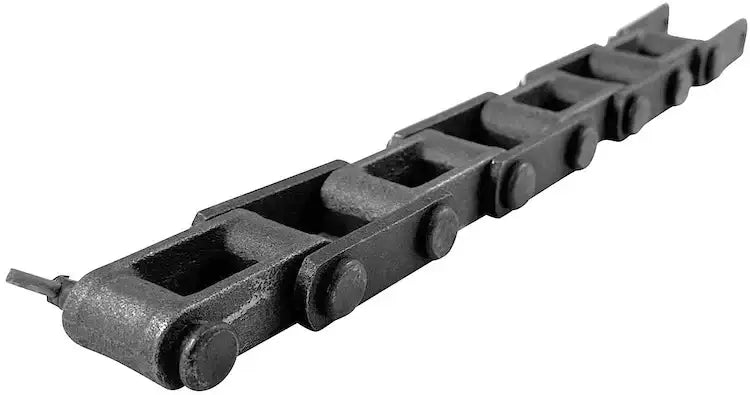

C60 Chain - 2.307" Pitch Cast Combination Chain

C60 chain is a 2.307" pitch cast combination chain with a 25,300 LB tensile strength. C60 chain is found in a broad range of conveying applications around the world and provides excellent operation in abrasive or even gritty applications. More specifically, we supply C60 conveyor chains in bucket elevators, flight conveyors, forest products, grain handling, sugar processing, and more! Construction-wise, the C60 chain has cast inner links (block) and mild steel pin links for the benefit of withstanding gritty applications while at an economical price point and upholding tensile strength. The chain can operate bi-directionally due to the links being symmetric and can be used in abrasive or non-abrasive applications. Additionally, we supply a range of C60 chain attachments, sprockets, and other accessories. For additional information or to get a quote on the C60 cast combination chain, contact our customer service team, and we will be happy to assist you! It is important to note that the C60 chain typically comes as cottered construction, but we also supply this chain as riveted; please specify which configuration you need when requesting a quote.

C60 Chain Dimensions

• Chain Size: C60
• Pitch (P): 2.307"
• Overall Width - Cottered (C): 2.940"
• Overall Width - Riveted: 2.880"
• Pin Diameter (E): 0.500"
• Sidebar Height (F): 1.000"
• Barrel Diameter (H): 0.750"
• Head of Pin to Center Line (J): 1.310"
• End of Pin to Center Line - Cottered (K): 1.440"
• End of Pin to Center Line - Riveted: 1.310"
• Sidebar Thickness (T): 0.250"
• Maximum Allowable Sprocket Face (A): 0.880"
• Barrel Length (X): 1.690"
• Tensile Strength: 25,300 LB
• Working Load: 2,620 LB
• Links Per 10ft: 52
• Weight: 3.0 LB/ FT
