#60 Straight Sidebar Roller Chain - 10ft Box
$189.99
SKU: C60-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
#60 Straight Sidebar Roller Chain - 10ft Box Description/Features
#60 Straight Sidebar Roller Chain - 10ft Box Specifications

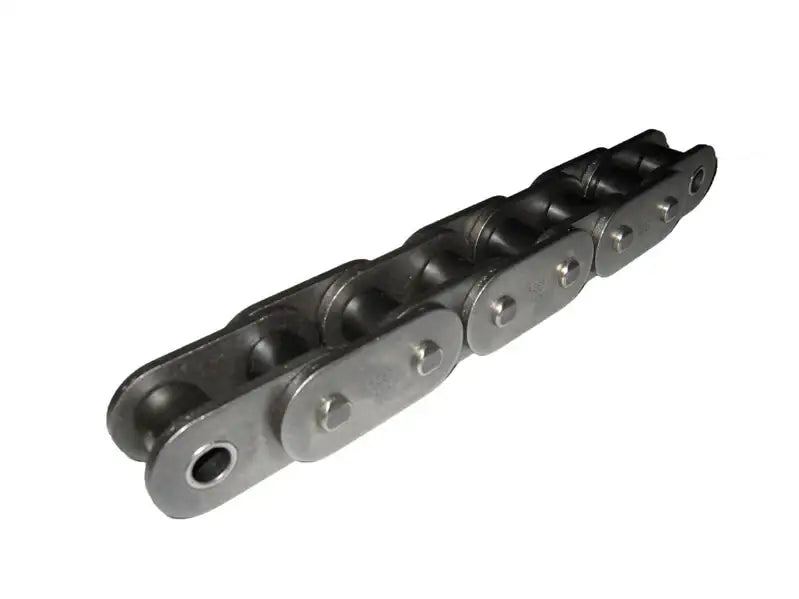

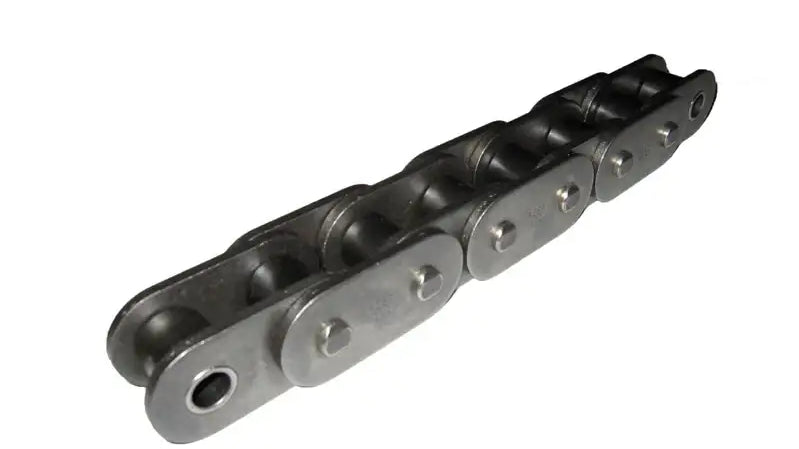

C60 Straight Sidebar Roller Chain
This #60 straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. This chain can run on ANSI #60 standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box or on 50ft reels, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. If you have any questions or are in need of a custom length please contact us.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
This #60 straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. This chain can run on ANSI #60 standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box or on 50ft reels, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. If you have any questions or are in need of a custom length please contact us.
Dimensions:
Chain Size: #60 Straight Sidebar Roller Chain Tensile Strength: 9,270lbs Pitch (P): 0.750" Roller Width (W): 0.500" Roller Diameter (R): 0.469" Plate Height (H): 0.698" Plate Thickness (T): 0.094" Pin Diameter (D): 0.234" Overall Width (F): 1.000" Weight Per Foot: 1.14 lbs/FT
Phone: (407) 347-3519
Email:
Chain Size: #60 Straight Sidebar Roller Chain Tensile Strength: 9,270lbs Pitch (P): 0.750" Roller Width (W): 0.500" Roller Diameter (R): 0.469" Plate Height (H): 0.698" Plate Thickness (T): 0.094" Pin Diameter (D): 0.234" Overall Width (F): 1.000" Weight Per Foot: 1.14 lbs/FT
