C55 A22 Attachment

Specialty Chain > Engineering Class Chains > Cast Combination Chain > C55 Combination Chain

C55 A22 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: C55-A22-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714976350575" , "metafield_value":""}]
C55 A22 Attachment Features
C55 A22 Attachment Specifications
C55 A22 attachments are used in a wide range of applications including; bucket elevators, conveyors, flight conveyors, forest products, grain handling, sugar processing and more! This C55 A22 attachment has the capability to convey abrasive and non-abrasive materials, which greatly improves its range of applications. We can supply C55 chain with A22 attachments in any configuration needed. To get a quote or for additional information please contact us and we will be happy to assist you.

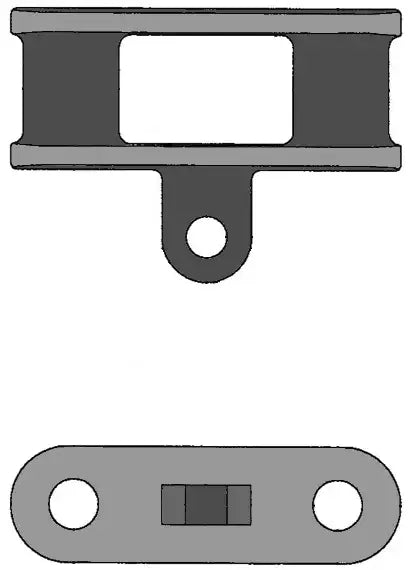

Dimensions:
C55 A22 Attachment
  • Attachment Number: C55 A22
  • Pitch: 1.631"
  • Bolt Diameter: 0.310"
  • Hole Diameter (D): 0.340"
  • Dimension (G): 1.940"
  • Dimension (H): 0.440"
  • Dimension (K): 0.810"
  • Dimension (N): 1.500"
  • Dimension (R): 0.750"
  • Dimension (T): 0.250"
  • Weight: 2.9 LBS/ FT
