• #35 Straight Sidebar Roller Chain
1 1

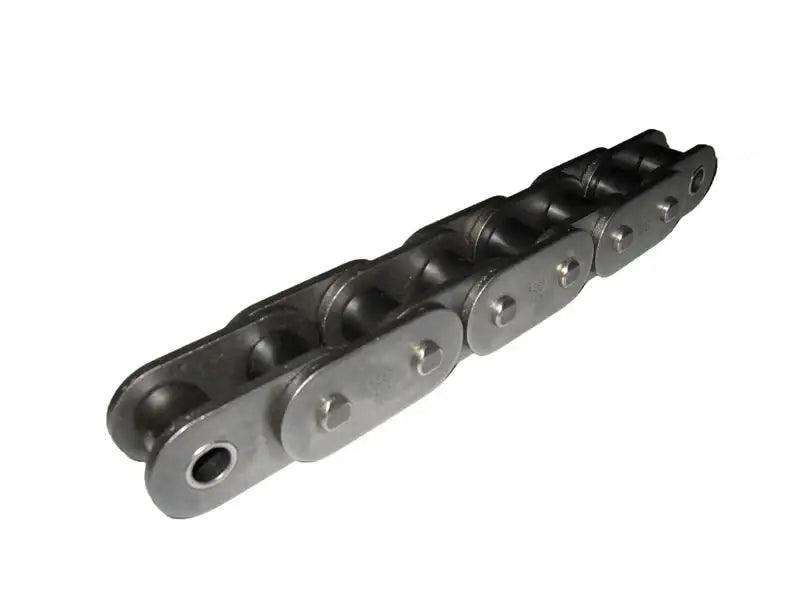

#35 Straight Sidebar Roller Chain - 10ft Box

#35 Straight Sidebar Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
Product Code: C35-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
Made In USA 35 Chain Breaker | 35 Roller Chain Breaker
Made In USA 35 Chain Breaker | 35 Roller Chain Breaker
$99.99
Login
#35 Straight Sidebar Single Strand Connecting (Master) Link
#35 Straight Sidebar Single Strand Connecting (Master) Link
Login
View full details
Description
Specification
C35 Straight Sidebar Roller Chain

This #35 straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. This chain can run on ANSI #35 standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box or on 50ft reels, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. If you have any questions or are in need of a custom length please contact us.

Dimensions:
#35 Straight Sidebar Roller Chain - 10ft Box
  • Chain Size: #35 Straight Sidebar Roller Chain
  • Tensile Strength: 2,350lbs
  • Pitch (P): 0.375"
  • Roller Width (W): 0.188"
  • Roller Diameter (R): 0.200"
  • Plate Height (H): 0.354"
  • Plate Thickness (T): 0.049"
  • Pin Diameter (D): 0.141"
  • Overall Width (F): 0.456"
  • Weight Per Foot: 0.262 lbs/FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Size: #35 Straight Sidebar Roller Chain
  • Ultimate Strength: 2,350lbs
  • Heat Treated For Increased Fatigue
  • Solid Rollers For Smooth Operation
  • Straight Sidebars Increase Strength, Working Life, and Fatigue
  • Runs On Standard Sprockets
  • High Strength & High Quality
Featured image
  • Chain Size: #35 Straight Sidebar Roller Chain
  • Tensile Strength: 2,350lbs
  • Pitch (P): 0.375"
  • Roller Width (W): 0.188"
  • Roller Diameter (R): 0.200"
  • Plate Height (H): 0.354"
  • Plate Thickness (T): 0.049"
  • Pin Diameter (D): 0.141"
  • Overall Width (F): 0.456"
  • Weight Per Foot: 0.262 lbs/FT
