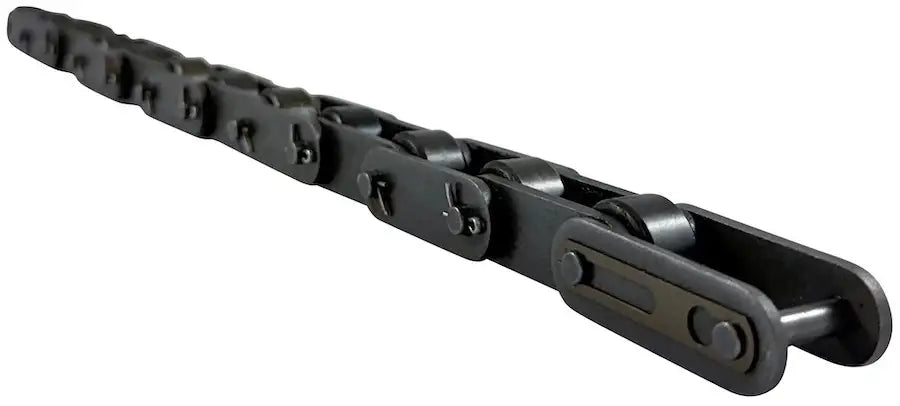

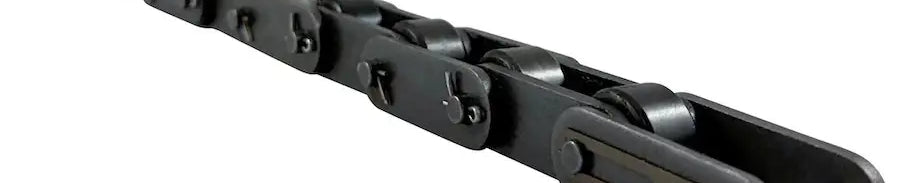

C2122H Cottered Roller Chain
Login to Request a Quote
C2122H cottered roller chain is manufactured using cotters instead of rivets. This creates a chain that is easier to disassemble than a standard riveted chain. Our C2122H cottered chain is manufactured in accordance with ANSI B29 Standards, meaning that it will directly interchange with other brands. This chain also uses heat-treated and shot peened components for an improved working life an durability, it also features solid rollers and is pre-stretched for a better long-term performance. Typically we supply C2122H cottered roller chain in 10ft boxes but alternate lengths are available upon request. We also supply
C2122H Cottered Chain Dimensions
- Chain Size: C2122H
- Pitch (P): 3.000"
- Roller Width (W): 1.000"
- Roller Diameter (R): 1.750"
- Plate Height (H): 1.378"
- Plate Thickness (T): 0.218"
- Pin Diameter (D): 0.437"
- Weight: 5.43 LBS/ FT
- Chain Size: C2122H
- Pitch (P): 3.000"
- Roller Width (W): 1.000"
- Roller Diameter (R): 1.750"
- Plate Height (H): 1.378"
- Plate Thickness (T): 0.218"
- Pin Diameter (D): 0.437"
- Weight: 5.43 LBS/ FT
