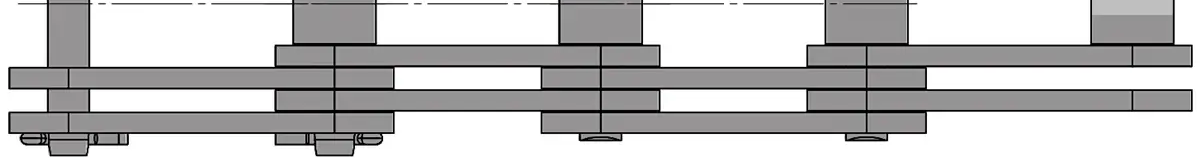

C2120H Double Capacity Roller Chain | C2120HDC Chain

C2120HDC double capacity roller chain is a high-strength 3.00" pitch chain that can operate on ANSI single-strand double-pitch sprockets with roughly double the tensile and working capacity as a standard C2120H roller chain. Double-pitch double-capacity chains have a unique ability in conveying applications to carry and transport much higher loads than standard double-pitch chains. This unique chain is designed with double the amount of side plates and an enlarged pin giving it strength capabilities almost on par with a leaf chain with the flexibility of a roller chain. C2120H double-capacity chain boasts an average ultimate tensile strength of 83,630 pounds with a tremendous dimensional-to-strength form factor of only 3.23" at its widest point (the connecting link)! What sets our C2120H double-capacity chains apart from others is the use of top-grade material grades, special high-shock pins, precision heat-treated components, shot-peened components, a specific factory pre-load, and solid round parts (bushings & rollers). Combining these processes, features, and premium raw materials results in a double-capacity roller chain that is highly capable and durable. We typically supply C2120HDC chains in lengths of 10ft, including one connecting link, but alternative lengths are available upon request. For additional information or to get a quote on our premium C2120HDC double-capacity roller chain, contact our customer support team, and we will be happy to assist you!

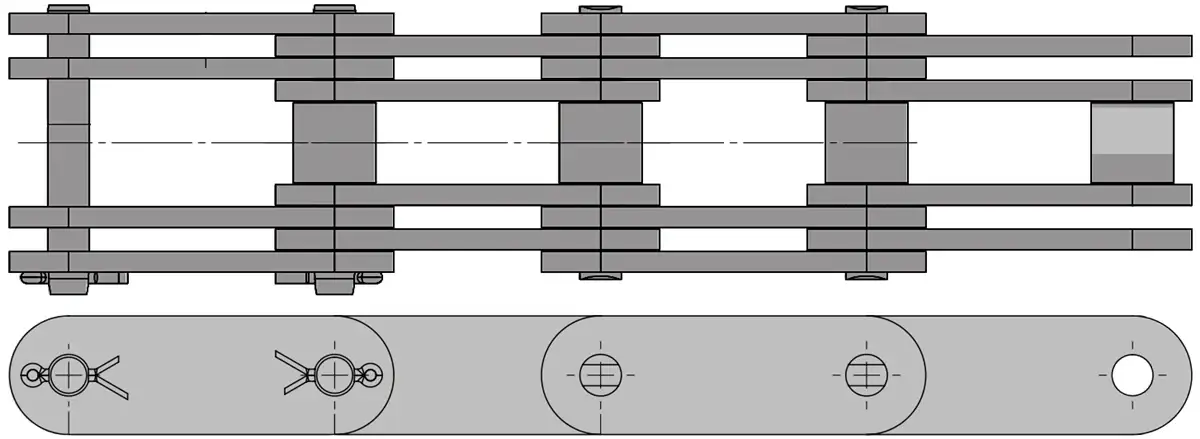

C2120HDC Double Capacity Chain Dimensions

• Chain Size: C2120HDC
• Pitch (P): 3.000"
• Inside Width (W): 0.875"
• Roller Diameter (R): 1.000"
• Pin Diameter (D): 0.437"
• Dimension (L1): 1.53"
• Dimension (L2): 1.70"
• Overall Chain Width (LR): 3.06"

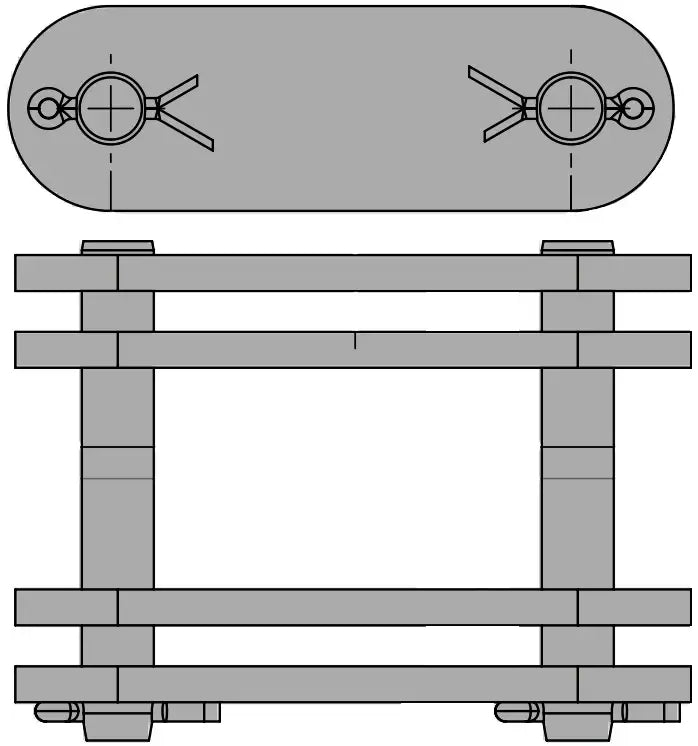

• Overall Connecting Link Width (LC): 3.23"
• Plate Height (H): 1.374"
• Plate Thickness (T): 0.220"
• Average Ultimate Strength: 83,630 LBS
• Rated Working Load: 8,805 LBS
• Weight: 3.69 LBS/ FT
