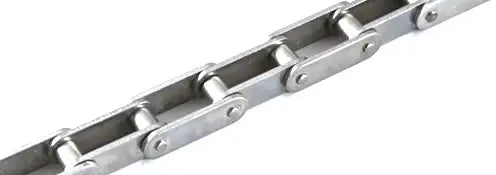

C2120H Stainless Steel Roller Chain 10ft Box
Login to Request a Quote

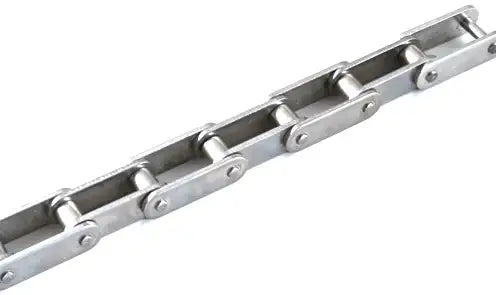

C2120H stainless steel roller chain is a 3" pitch ANSI double-pitch conveyor series chain designed to excel in conveying operations. Our high-quality C2120H stainless chain is manufactured from superior 304-grade stainless material and features high-precision components for improved performance! Being made from 304SS, this chain can operate in food-grade, corrosive, and abrasive environments and temperatures ranging from -200 to +700 degrees Fahrenheit. We supply C2120H stainless chain in 10ft boxes, including one master link, but custom lengths are available upon request. Additionally, we supply attachments, chain tools, and UHMW guides for the C2120H stainless steel roller chain. For additional information or to get a quote on our high-quality C2120H stainless steel roller chain, contact our customer service team, and we will gladly assist you!
C2120H Stainless Steel Chain Dimensions
- Roller Chain Size: C2120HSS
- Chain Pitch (P): 3.000"
- Roller Width (R): 0.993"
- Roller Diameter (D): 0.875"
- Overall Width (W): 2.161"
- CL Overall Width (X): 2.429"
- Plate Height (H): 1.386"
- Pin Diameter (L): 0.437"
- Tensile Strength: 17,200 LBS
- Working Load: 870 LBS
- Weight: 3.43 LBS/ FT
- Roller Chain Size: C2120HSS
- Chain Pitch (P): 3.000"
- Roller Width (R): 0.993"
- Roller Diameter (D): 0.875"
- Overall Width (W): 2.161"
- CL Overall Width (X): 2.429"
- Plate Height (H): 1.386"
- Pin Diameter (L): 0.437"
- Tensile Strength: 17,200 LBS
- Working Load: 870 LBS
- Weight: 3.43 LBS/ FT
