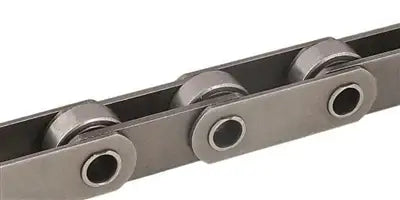

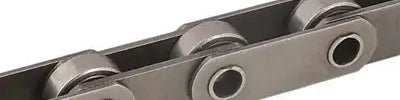

Chain Size: C2089H Pitch (P): 50.80 mm Roller Diameter (Dr): 28.59 mm Inside Width (W): 15.75 mm Plate Height (Hi): 24.00 mm Plate Thickness (S): 3.80 mm Pin Outside Diameter (Dp): 11.18 mm Pin Inside Diameter (Df): 8.05 mm Pin Width (A1): 34.40 mm Overall Width (B): 40.40 mm Average Ultimate Strength: 55.0 kN Average Weight: 3.33 Kg/m
Email:
Feature
- Premium Quality Chain
- Supplied With One Connecting Link Per Box
- Extremely High-Strength and Durable
Chain Size: C2089H Pitch (P): 50.80 mm Roller Diameter (Dr): 28.59 mm Inside Width (W): 15.75 mm Plate Height (Hi): 24.00 mm Plate Thickness (S): 3.80 mm Pin Outside Diameter (Dp): 11.18 mm Pin Inside Diameter (Df): 8.05 mm Pin Width (A1): 34.40 mm Overall Width (B): 40.40 mm Average Ultimate Strength: 55.0 kN Average Weight: 3.33 Kg/m
