Roller Chain > More Roller Chains > Double Pitch Roller Chain
C2062-2 Roller Chain (Double Strand)
Note:
Custom Cut to Length Chain Also Available
SKU: C2062-2-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
C2062-2 Roller Chain (Double Strand) Features
C2062-2 Roller Chain (Double Strand) Specifications
C2062-2 roller chain is a double pitch double-strand carrier style conveyor chain with oversized rollers. The rollers on this chain extend past the side plates making it capable of conveying and carrying products across a smooth surface. We also supply sprockets and the guide track for the double C2062 chain. Our C2062-2 chain is dimensionally manufactured in accordance with ANSI B29 standards but above the standard in regards to performance, durability, and overall working life. We use high-quality carbon steel, heat-treated parts, and completely solid carry rollers for this chain. For more information or to get a quote please contact our customer service team and we will be happy to assist you!

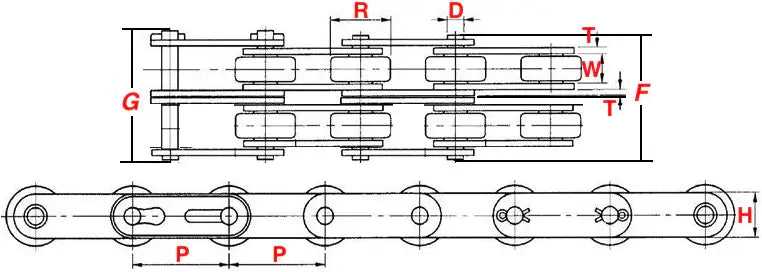

C2062-2 Roller Chain Dimensions
- Pitch (P): 1.500"
- Dimension (W): 0.500"
- Dimension (R): 0.875"
- Dimension (H): 0.683"
- Dimension (T): 0.093"
- Dimension (D): 0.234"
- Dimension (F): 1.900"
- Dimension (G): 1.960"
- Chain Weight: 2.90 LBS/ FT
- Pitch (P): 1.500"
- Dimension (W): 0.500"
- Dimension (R): 0.875"
- Dimension (H): 0.683"
- Dimension (T): 0.093"
- Dimension (D): 0.234"
- Dimension (F): 1.900"
- Dimension (G): 1.960"
- Chain Weight: 2.90 LBS/ FT
