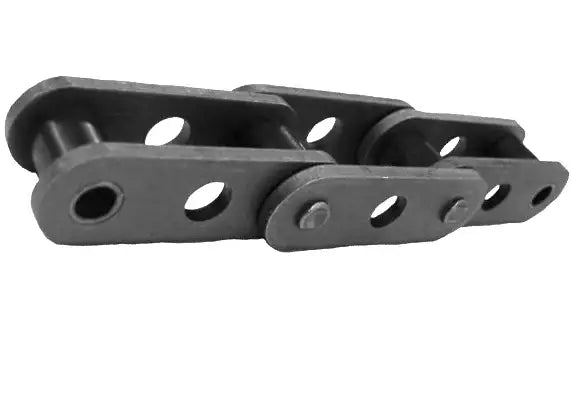

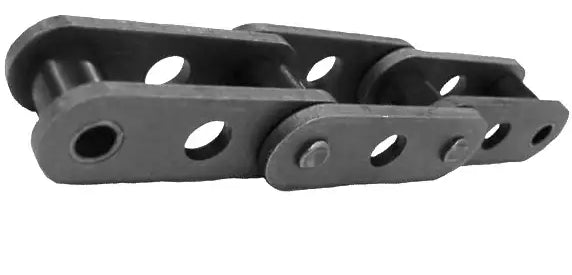

C2060H Chain with G1 Hole (Type B)
Note:
Custom Cut to Length Chain Also Available
SKU: C2060H-G1-B-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
C2060H Chain with G1 Hole (Type B) Features
C2060H Chain with G1 Hole (Type B) Specifications
C2060H chain with G1 hole attachments is used in many packaging and conveying applications. The type A G1 hole is placed in the center of each plate and does not have any negative effects on the integrity or performance of the chain. Something to note is that there are five different types of standard G1 holes (A, B, C, D, E), each one has a different hole size based on the applications needs. Specifically, this G1 attachment is the B style which means it has a hole inside diameter of 0.315". We typically supply C2060H chain with G1 hole attachments in 10ft boxes but alternate lengths are available upon request. For more information or to get a quote please contact us.
C2060H G1 Type B Dimensions
- Chain Size: C2060H
- Attachment Type: G1-B
- Pitch (P): 1.500"
- Dimension (T): 0.125"
- Dimension (G): 0.315"
- Dimension (H): 0.683"
- Chain Size: C2060H
- Attachment Type: G1-B
- Pitch (P): 1.500"
- Dimension (T): 0.125"
- Dimension (G): 0.315"
- Dimension (H): 0.683"
