C2052-2 Roller Chain (Double Strand)
SKU: C2052-2-CHAIN
Only 0 left in stockItem is out of stock
Item is unavailable
C2052-2 Roller Chain (Double Strand) Features
C2052-2 Roller Chain (Double Strand) Specifications
C2052-2 roller chain is a double pitch double-strand carrier style conveyor chain with oversized rollers. The rollers on this chain extend past the side plates making it capable of conveying and carrying products across a smooth surface. We also supply sprockets and the guide track for the double C2052 chain. Our C2052-2 chain is dimensionally manufactured in accordance with ANSI B29 standards but above the standard in regards to performance, durability, and overall working life. We use high-quality carbon steel, heat-treated parts, and completely solid carry rollers for this chain. For more information or to get a quote please contact our customer service team and we will be happy to assist you!

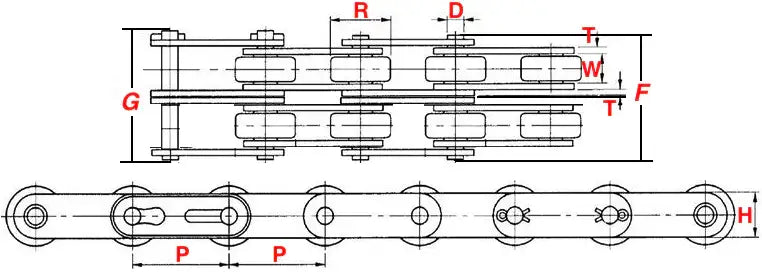

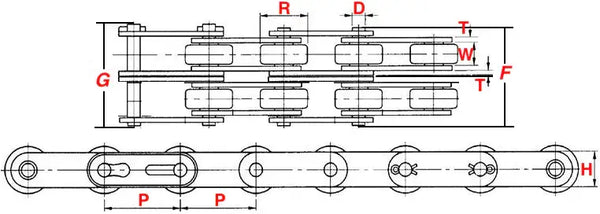

C2052-2 Roller Chain Dimensions
- Pitch (P): 1.250"
- Dimension (W): 0.375"
- Dimension (R): 0.750"
- Dimension (H): 0.593"
- Dimension (T): 0.080"
- Dimension (D): 0.200"
- Dimension (F): 1.510"
- Dimension (G): 1.570"
- Chain Weight: 1.80 LBS/ FT
- Pitch (P): 1.250"
- Dimension (W): 0.375"
- Dimension (R): 0.750"
- Dimension (H): 0.593"
- Dimension (T): 0.080"
- Dimension (D): 0.200"
- Dimension (F): 1.510"
- Dimension (G): 1.570"
- Chain Weight: 1.80 LBS/ FT
