C188 K2 Attachment Description/Features
C188 K2 Attachment Specifications
C188 K2 attachments are used in a wide range of applications including; bucket elevators, conveyors, flight conveyors, forest products, grain handling, sugar processing and more! This C188 K2 attachment has the capability to convey abrasive and non-abrasive materials, which greatly improves its range of applications. We can supply C188 chain with K2 attachments in any configuration needed. To get a quote or for additional information please contact us and we will be happy to assist you.

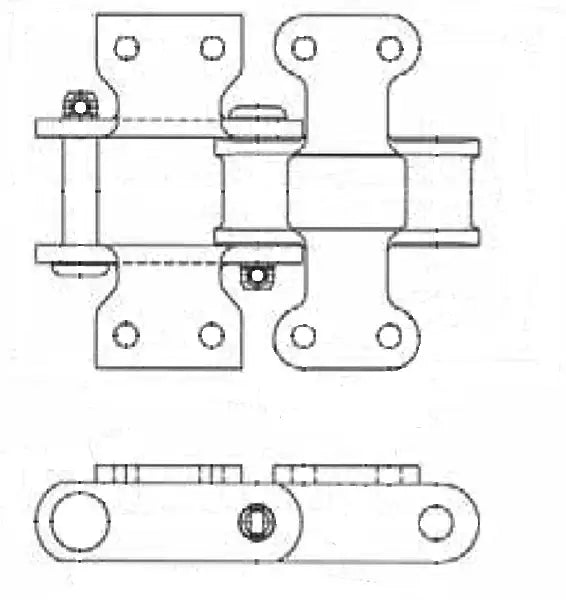

Dimensions:
C188 K2 Attachment
  • Attachment Number: C188 K2
  • Pitch: 2.609"
  • Bolt Diameter (D): 0.310"
  • Hole Diameter (D): 0.340"
  • Bolt Diameter (D1): 0.380"
  • Hole Diameter (D1): 0.410"
  • Dimension (J): 0.810"
  • Dimension (K): 1.310"
  • Dimension (M): 4.190"
  • Dimension (M1): 1.250"
  • Dimension (N): 0.620"
  • Dimension (O): 3.750"
  • Dimension (R): 2.120"
  • Dimension (R1): 2.120"
  • Dimension (T): 0.250"
  • Dimension (T1): 0.250"
  • Dimension (W): 5.060"
  • Dimension (W1): 5.120"
  • Weight: 5.2 LBS/ FT
