C188 F2 Attachment

SKU: C188-F2-ATTACHMENT
In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability
Request a Quote
<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

Call us!
[{"variant_id":"51714962030959" , "metafield_value":""}]
C188 F2 Attachment Description/Features
C188 F2 Attachment Specifications
C188 F2 attachments are used in a wide range of applications including; bucket elevators, conveyors, flight conveyors, forest products, grain handling, sugar processing and more! This C188 F2 attachment has the capability to convey abrasive and non-abrasive materials, which greatly improves its range of applications. We can supply C188 chain with F2 attachments in any configuration needed. To get a quote or for additional information please contact us and we will be happy to assist you.

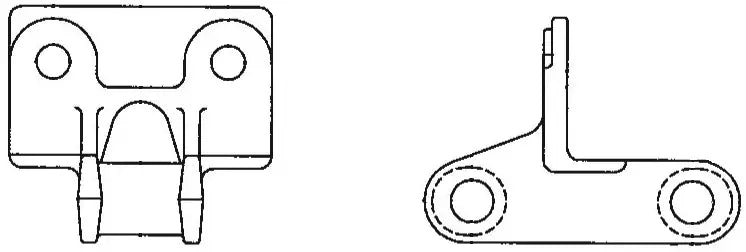

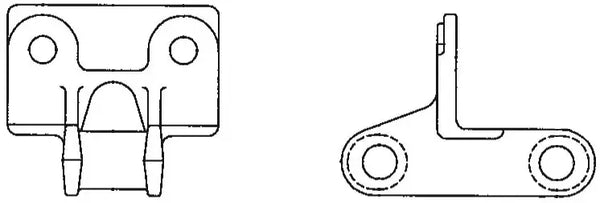

Dimensions:
C188 F2 Attachment
  • Attachment Number: C188 F2
  • Pitch: 2.609"
  • Bolt Diameter: 0.310"
  • Hole Diameter (D): 0.340"
  • Dimension (J): 2.190"
  • Dimension (K): 1.250"
  • Dimension (M): 2.000"
  • Dimension (N): 1.000"
  • Dimension (P): 1.620"
  • Dimension (T): 0.310"
  • Dimension (U): 1.500"
  • Dimension (W): 2.750"
  • Weight: 4.5 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Attachment Number: C188 F2
  • Pitch: 2.609"
  • Bolt Diameter: 0.310"
  • Hole Diameter (D): 0.340"
  • Dimension (J): 2.190"
  • Dimension (K): 1.250"
  • Dimension (M): 2.000"
  • Dimension (N): 1.000"
  • Dimension (P): 1.620"
  • Dimension (T): 0.310"
  • Dimension (U): 1.500"
  • Dimension (W): 2.750"
  • Weight: 4.5 LBS/ FT
