10B Straight Sidebar Roller Chain - 10ft Box

Name: 10B Straight Sidebar Roller Chain - 10ft Box
Brand: USA ROLLER CHAIN
SKU: C10B-CHAIN
Availability: InStock

SKU: C10B-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

10B Straight Sidebar Roller Chain - 10ft Box Description/Features

10B Straight Sidebar Roller Chain - 10ft Box Specifications

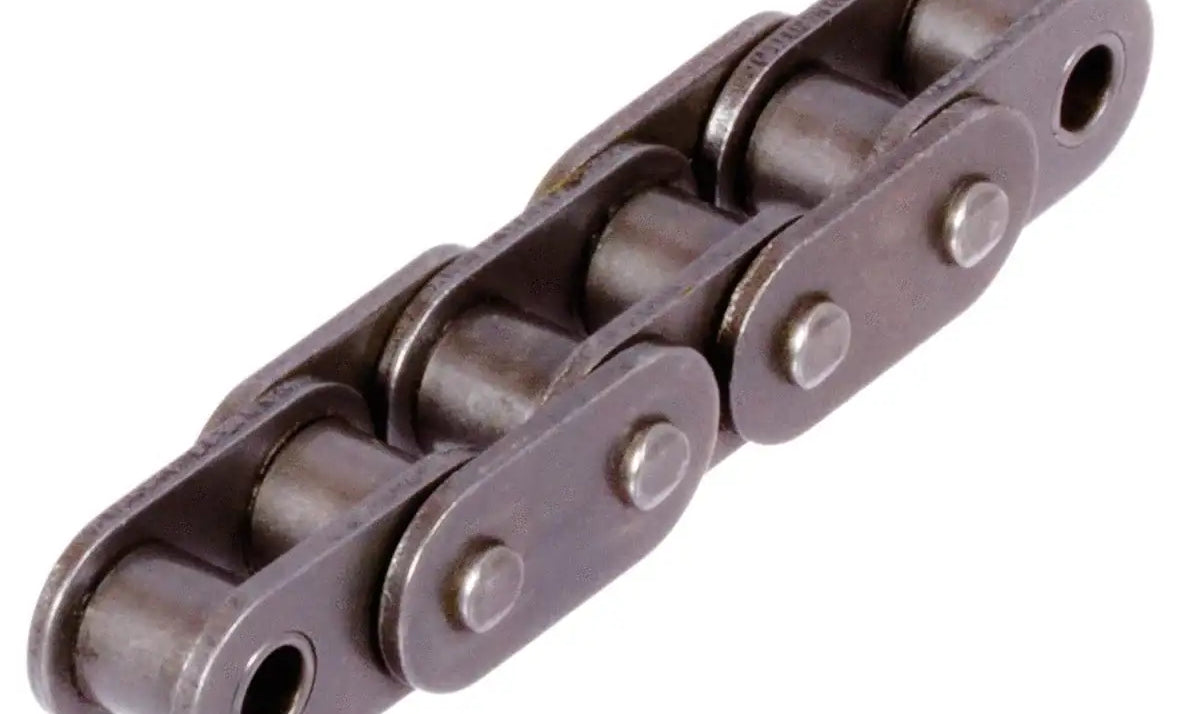

10B Straight Sidebar Roller Chain

This 10B British Standard (Metric) straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. This chain can run on ISO standard 10B sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. For pricing and availability please contact us.

Dimensions:

Chain Size: 10B Straight Sidebar Roller Chain
Tensile Strength: 5,690lbs
Pitch (P): 0.625"
Roller Width (W): 0.379"
Roller Diameter (R): 0.400"
Plate Height (H): 0.522"
Plate Thickness (T1): 0.064"
Plate Thickness (T2): 0.064"
Pin Diameter (D): 0.200"
Overall Width (F): 0.762"
Weight Per Foot: 0.75 lbs/FT
