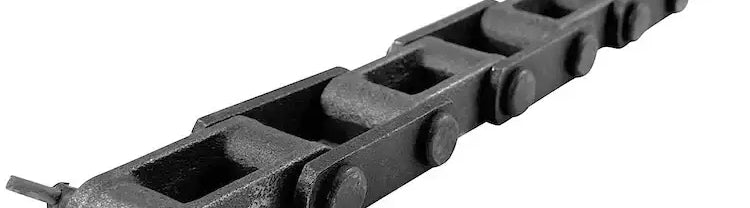

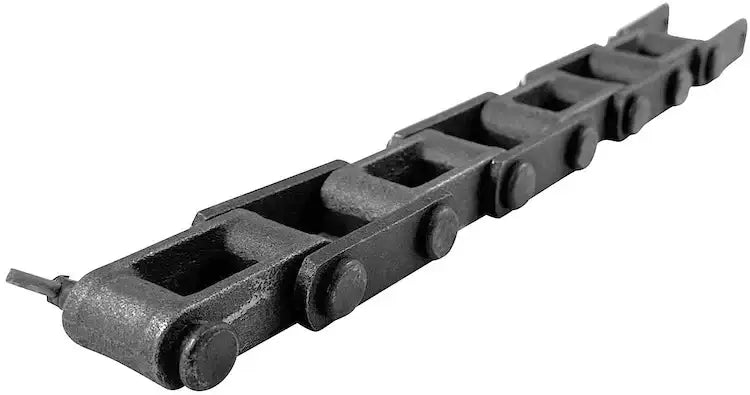

C102B Chain - 4" Pitch Cast Combination Chain

C102B chain is a 4" pitch, cast combination chain and is one of the most common sizes in this chain class! Most commonly found in grain elevators or lumber mills, the C102B chain possesses excellent strength, with an average tensile rating of 32,400 LB. The C102B chain is also popular in sugar mills, flight conveyors, live-bottom trucks, and more. Construction-wise, the C102B chain has cast inner links (block) and mild steel pin links to benefit withstanding gritty applications while at an economical price point and upholding tensile strength. The chain can operate bi-directionally due to the links being symmetric and can be used in abrasive or non-abrasive applications. Additionally, we supply a range of C102B chain attachments, sprockets, and other accessories. For additional information or to get a quote on the C102B cast combination chain, contact our customer service team, and we will be happy to assist you! It is important to note that the C102B chain typically comes as cottered construction, but we also supply this chain as riveted; please specify which configuration you need when requesting a quote.

C102B Chain Dimensions

• Chain Size: C102B
• Pitch (P): 4.000"
• Overall Width - Cottered (C): 4.560"
• Overall Width - Riveted: 4.380"
• Pin Diameter (E): 0.625"
• Sidebar Height (F): 1.500"
• Barrel Diameter (H): 0.970"
• Head of Pin to Center Line (J): 2.060"
• End of Pin to Center Line - Cottered (K): 2.280"
• End of Pin to Center Line - Riveted: 2.190"
• Sidebar Thickness (T): 0.380"
• Maximum Allowable Sprocket Face (A): 2.000"
• Barrel Length (X): 2.910"
• Tensile Strength: 32,400 LB
• Working Load: 5,400 LB
• Links Per 10ft: 30
• Weight: 6.8 LB/ FT
