Specialty Chain > ANSI Leaf Chains
BL1268 Leaf Chain
Note:
Custom Cut to Length Chain Also Available
SKU: BL1268-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
BL1268 Leaf Chain Features
BL1268 Leaf Chain Specifications

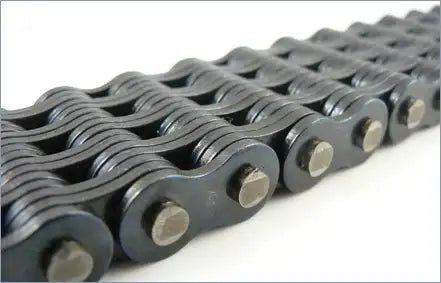

BL1268 Leaf Chain is manufactured to ANSI (American) standards and is a heavy-duty series of leaf chain. The most common applications for leaf chain is forklifts, material handling, and lifting applications that require a high strength and heavy duty chain. The standard BL1268 leaf chain that we offer is manufactured using high quality components (pins and plates) that have gone through special manufacturing processes to ensure strength and durability, more so than other leaf chains on the market. This chain has a 6X8 lacing and is supplied as 10ft boxes, reels (25ft - 100ft), and cut to length sections upon request.
Standard Series Specifications:
USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get pricing and availability on BL1268 Leaf Chain please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Click Here To See Our Other Products!
- Chain Size: BL1268
- Pitch (P): 1.500"
- Pin Diameter (A): 0.500"
- Plate thickness (B): 0.219"
- Plate Height (C): 1.425"
- Pin Length (D): 3.399"
- Chain Weight: 11.06 LBS/ Ft
- Tensile Strength: 719.2 kN
Although the BL1268 leaf chain is not as ubiquitous as other BL series chains, it can meet the demands of rigorous lifting, hoisting, and material handling tasks. Its load capacity allows for utilization in port material handling equipment such as lift trucks, chassis rotators, loaded container handlers, saddle trucks, empty container handlers, top picks, and mobile cranes.
Email:
Click Here To See Our Other Products!
- Chain Size: BL1268
- Pitch (P): 1.500"
- Pin Diameter (A): 0.500"
- Plate thickness (B): 0.219"
- Plate Height (C): 1.425"
- Pin Length (D): 3.399"
- Chain Weight: 11.06 LBS/ Ft
- Tensile Strength: 719.2 kN
