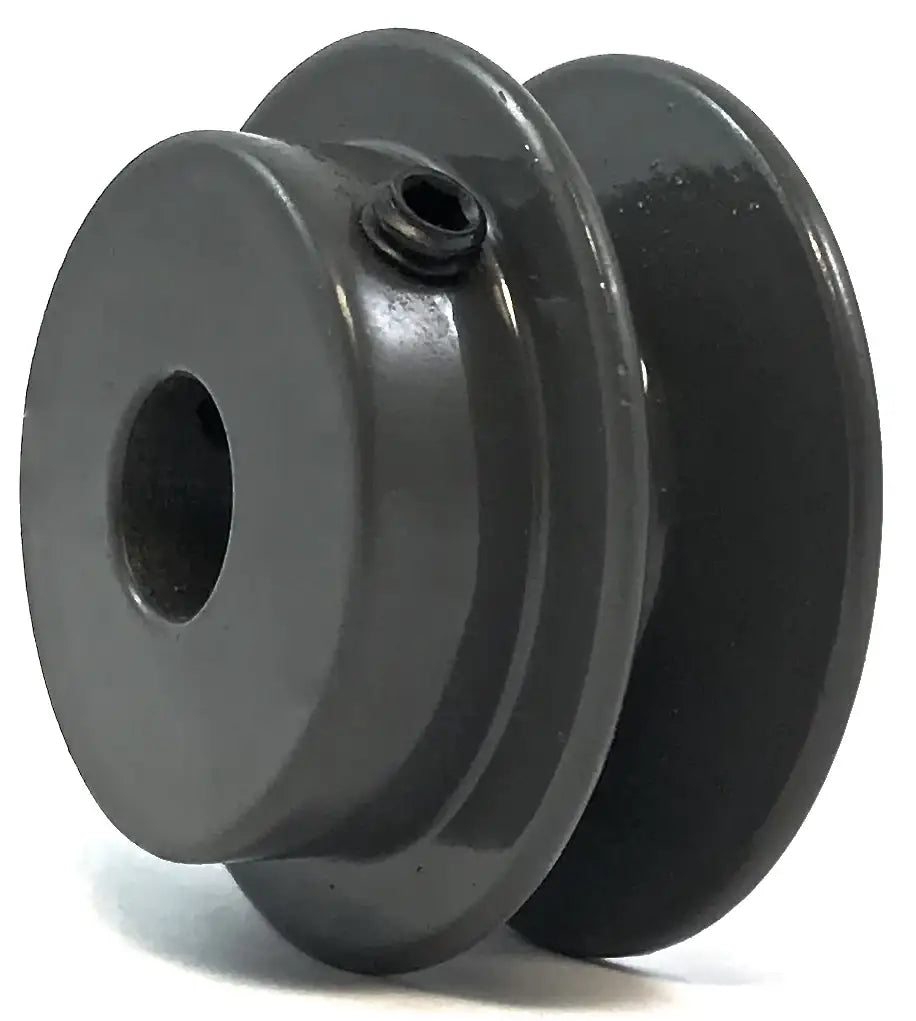

AK22 Pulley 1/2" Bore

This AK22 Pulley 1/2" bore is directly interchangeable with other manufacturers, is 2.20" in diameter, is used with A style V-Belts, and is manufactured in accordance with ARPM Standard IP20 for safe operation. What separates this AK22 pulley from the others is that it is made using a high grade-35 cast iron, is phosphate coated, painted, and balanced at the factory. Using the grade 35 cast iron offers a higher tensile strength and is more wear resistant than the more commonly used grade 25. While the phosphate coated and then painted finish adds corrosion resistance to the AK22 pulley. Then, because this pulley is dynamically balanced it runs smoother which gives bearings and other components of the equipment a longer working life. Additionally, we stock a full line of premium A-Series V-Belts, shafting, key-stock, motors, gearboxes, bearings, and much more!

AK22 Pulley 1/2" Dimensions

• Pulley Size: AK22
• Outside Diameter (O.D.): 2.20"
• Pitch Diameter For 4L/A Belts (P.D.): 2.00"
• Pitch Diameter For 3L Belts (P.D.): 1.66"
• Pulley Type: 1
• Bore Size: 1/2"
• Dimension (F): 21/32"
• Dimension (L): 15/16"
• Dimension (P): 7/16"
• Dimension (C): 5/32"
• Weight: 0.5 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get pricing and availability on an AK22 Pulley with 1/2" bore please contact us and we will be happy to assist you.
