Leeson 1-1/2 HP Explosion Proof Motor 56J

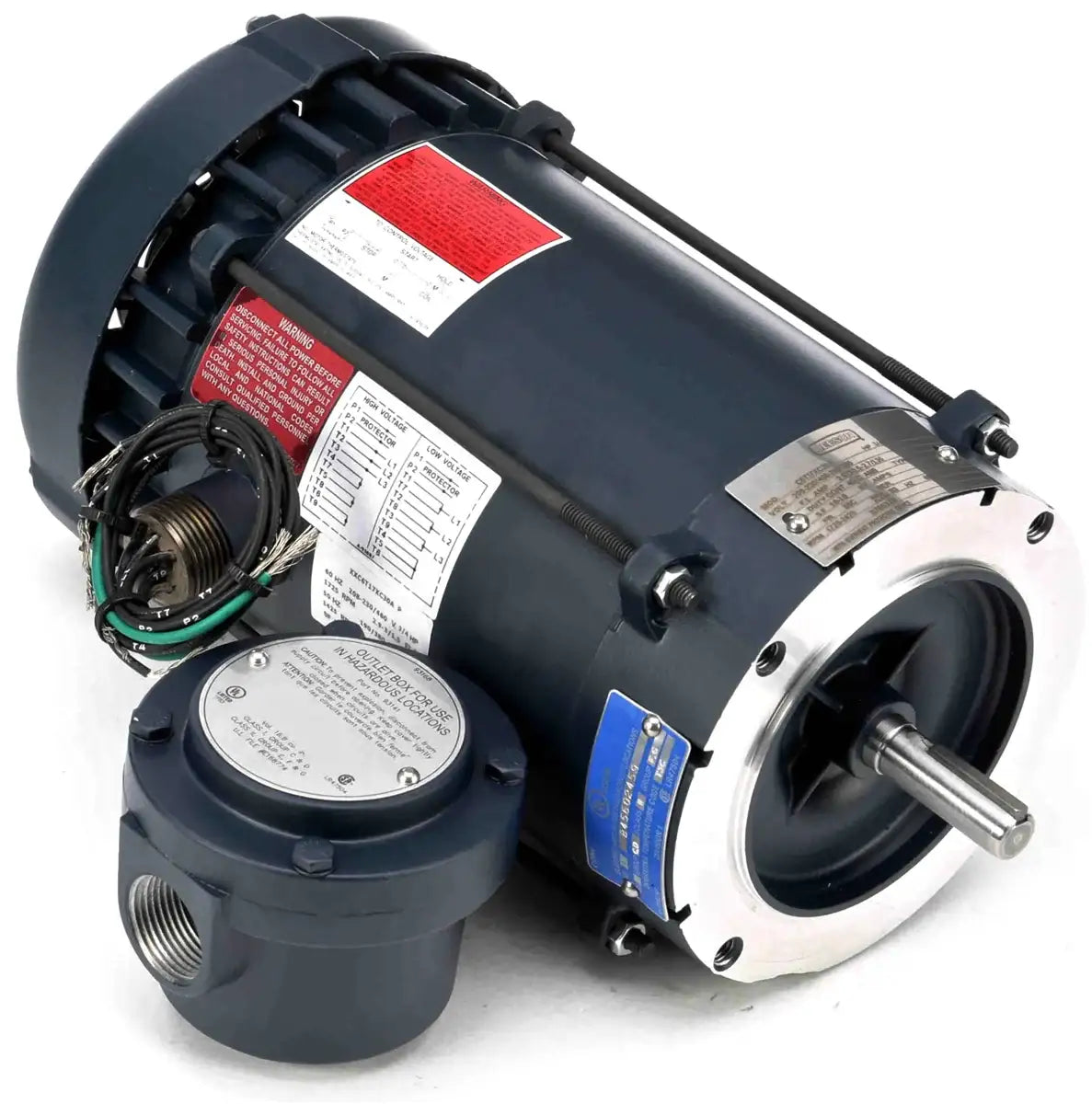

Leeson A6T34XC30 1.5 HP explosion proof electric motor is a three phase, 3600 RPM 56J frame size motor with a C-Face (less-base). This hazardous application motor is rated for Division I and Division II, class I, groups C and D, as well as Class II Groups F and G. Being manufactured in accordance to National Electrical Manufacturers Association (NEMA) standard means that this electric motor will drop-in replace most of the common brands out there, and this motor even includes an explosion proof conduit box. More specifically, Leeson motors use a premium double-shielded ball bearing, has an industry leading warrantee, and meets all UL as well as CSA Safety Requirements. The A6T34XC30 (catalog # 116182.00) explosion proof motor uses has an automatic overload protection for additional safety and ease of mind. When making a selection of an explosion proof motor it is important to select a motor that is approved for use in the specific class or group that defines the hazardous environment the motor will run in, refer to "Explosion Proof Motor Classification" on our main explosion proof motor main page for more information. For additional information or to get a quote on a Leeson Three-Phase 1-1/2 HP Explosion Proof Electric Motor, 3600 RPM, 56J Frame, C-Face (less-base) please contact us and we will be happy to assist you.

Leeson A6T34XC30 Explosion Proof Motor Specifications

HP	SYN RPM 60Hz	NEMA Frame	Catalog #	Model #	Weight (LBS)	Voltage	Overload Protection	F. L. AMPS @ 230V	% F.L. EFF.	Service Factor	Dimension (C)
