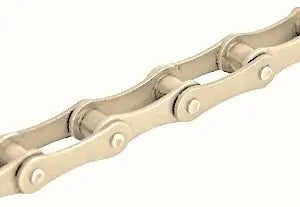

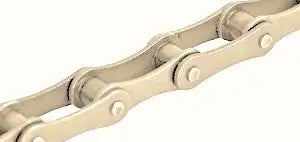

A2040 Nickel Plated Roller Chain

Name: A2040 Nickel Plated Roller Chain
Brand: USA ROLLER CHAIN
SKU: A2040-NICKEL-PLATED-CHAIN
Availability: InStock

SKU: A2040-NICKEL-PLATED-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

A2040 Nickel Plated Roller Chain Description/Features

A2040 Nickel Plated Roller Chain Specifications

This A2040 nickel plated roller chain offers high strength, durability, great performance, and conforms to all ANSI standards. The nickel plating on this chain has been done to each component before being assembled and then inspected to ensure a full coverage and a smooth surface to for the longest working life possible and to prevent chemical attack along with stress cracking. Nickel plated roller chain is very useful in humid and slightly corrosive applications where a normal roller chain will not hold up. A2040 nickel plated roller chain will run on standard A2040 sprockets and has the same dimensions as A2040 roller chain. Additionally we offer a full line of A2040 attachments, sprockets, and accessories!

Dimensions:

Chain Size: A2040NP
Pitch (P): 1.000"
Roller Width (W): 0.312"
Roller Diameter (R): 0.312"
Plate Height (H): 0.463"
Plate Thickness (T): 0.060"
Pin Diameter (D): 0.156"
Chain Overall Width (F): 0.640"
Connecting Link Overall Width: 0.695"
Weight Per Foot: 0.30 LBS
