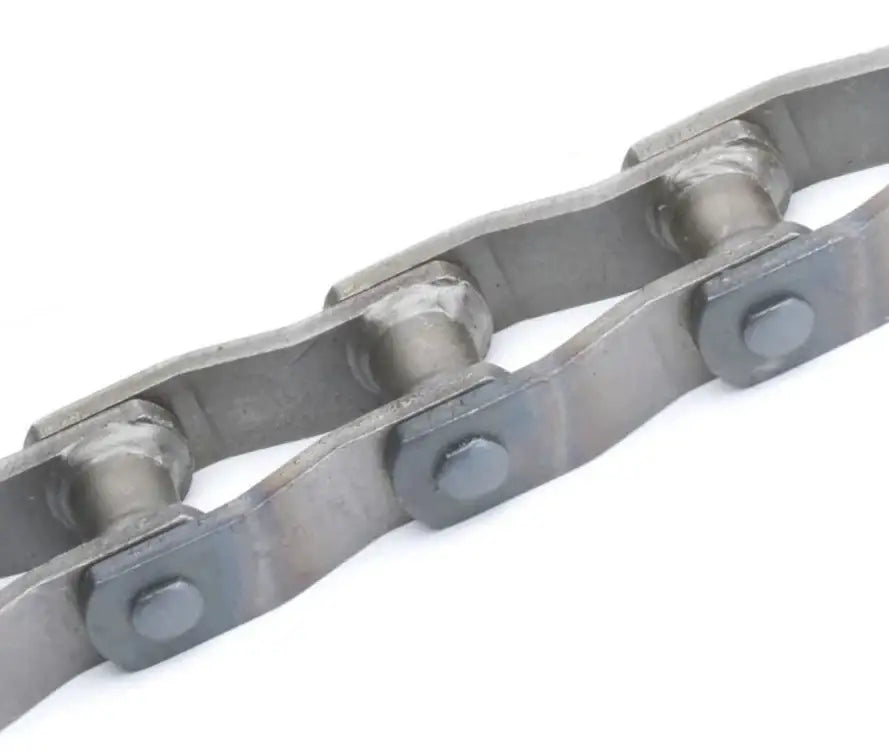

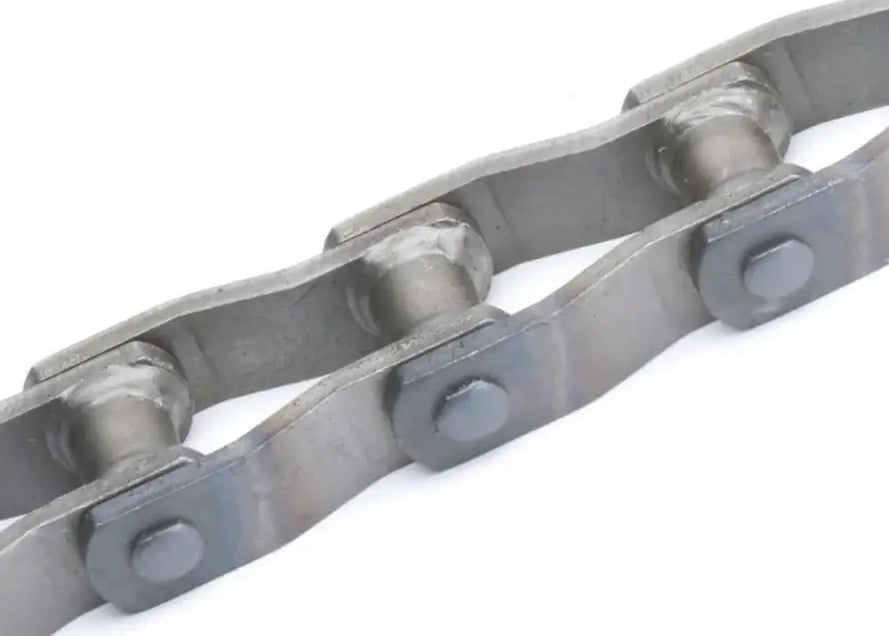

WH132HD Chain - Heavy Duty

Specialty Chain > Engineering Class Chains > Welded Steel Chain > Offset Sidebar Welded Steel Chain > Heavy Duty Welded Steel Chain > WH132HD Welded Steel Chain

WH132HD Chain - Heavy Duty

Note: Custom Cut to Length Chain Also Available
SKU: WH132HD-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715490185583" , "metafield_value":""}]
WH132HD Chain - Heavy Duty Features
WH132HD Chain - Heavy Duty Specifications
This WH132HD chain that we offer exceeds in quality, working life, and strength. Additionally, This WH132HD heavy-duty chain is extremely durable, low maintenance, and is supplied at a great price! Something that is notable about this chain is that each and every component has been heat-treated and constructed using high quality steel to further increase the overall working life and strength of the chain. Also, this chain is stronger than the standard WH132 chain because it has thicker sidebars and larger diameter pins and barrels which in turn dramatically increases the overall working life and durability of the chain. WH132HD welded steel chain is often recommended for most conveying, driving, and elevating applications were a high-strength and durable steel roller-less chain is required. Some of the applications where WH78HD heavy-duty chain is most commonly found are; heavy-duty conveyors, forest products, grain handling, pulp and paper, and sugar processing.

Dimensions:
WH132HD Chain - Heavy Duty
  • Part Number: WH132HD
  • Working Load: 16,200lbs
  • Tensile Strength: 139,500lbs
  • Pitch (A): 6.050"
  • Side Bar Height (B): 2.000"
  • Side Bar Thickness (C): 0.620"
  • Rivet Pin Diameter (D): 1.000"
  • Overall Width (E): 6.750"
  • Bearing Length (F): 4.620"
  • Barrel Diameter (H): 1.620"
  • Maximum Sprocket Width (G): 2.880"
  • Extreme Durability & High Strength
  • Easy Attachment Weld Ability


We also offer a full line of high quality sprockets that range in tooth size, bore size, and hub configuration. We can even supply Made To Order (MTO) and custom sprockets to meet your exact needs.
WH132HD Chain - Heavy Duty__WH132HD Chain - Heavy Duty__WH132HD Chain - Heavy Duty


We also offer a full line of attachments for this chain that can be assembled in any configuration needed.
WH132HD Chain - Heavy Duty


Needing something stronger? Checkout the option below!
WH132HD Chain - Heavy Duty


For more information on WH132HD Heavy-Duty Welded Steel Chain or to get a quote on sprockets or attachments, please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: WH132HD
  • Working Load: 16,200lbs
  • Tensile Strength: 139,500lbs
  • Pitch (A): 6.050"
  • Side Bar Height (B): 2.000"
  • Side Bar Thickness (C): 0.620"
  • Rivet Pin Diameter (D): 1.000"
  • Overall Width (E): 6.750"
  • Bearing Length (F): 4.620"
  • Barrel Diameter (H): 1.620"
  • Maximum Sprocket Width (G): 2.880"
  • Extreme Durability & High Strength
  • Easy Attachment Weld Ability
