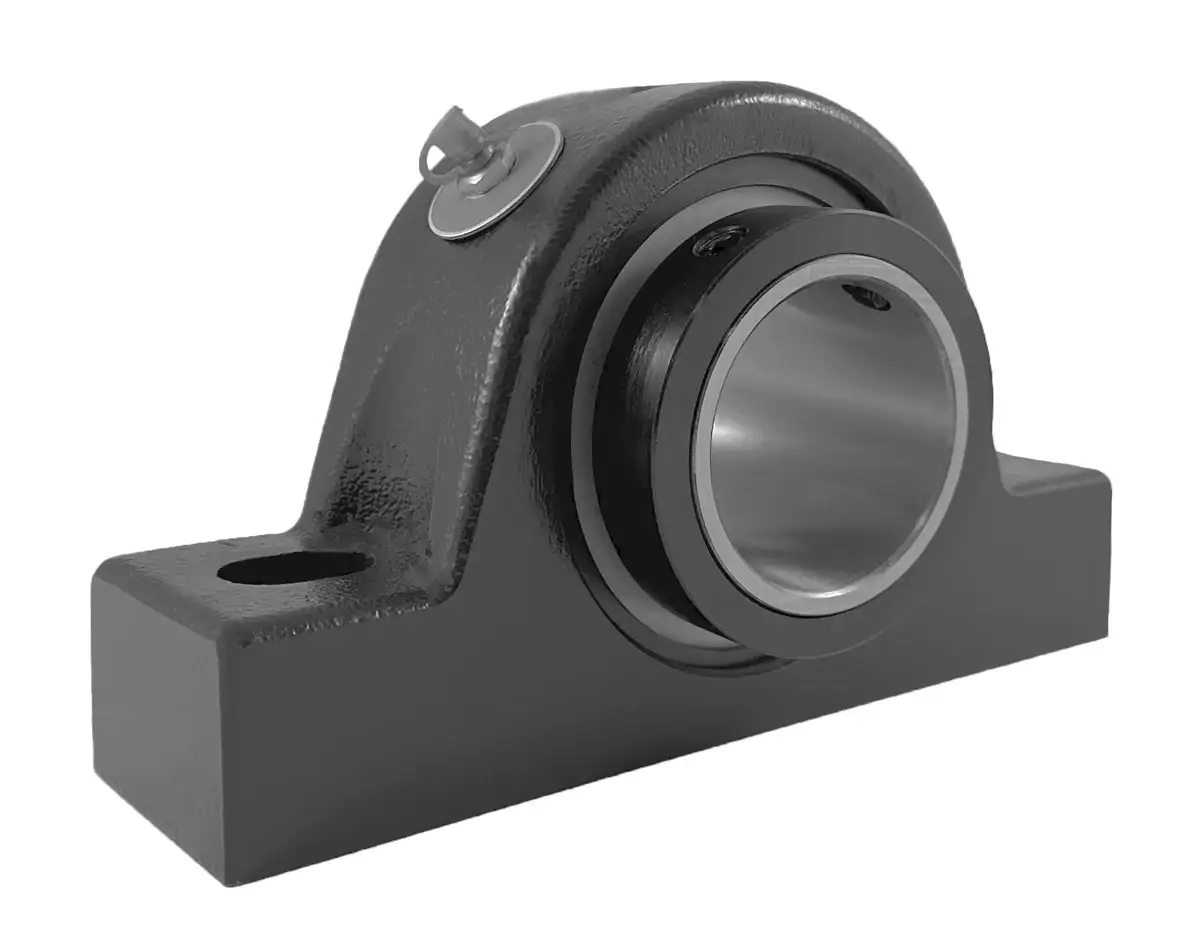

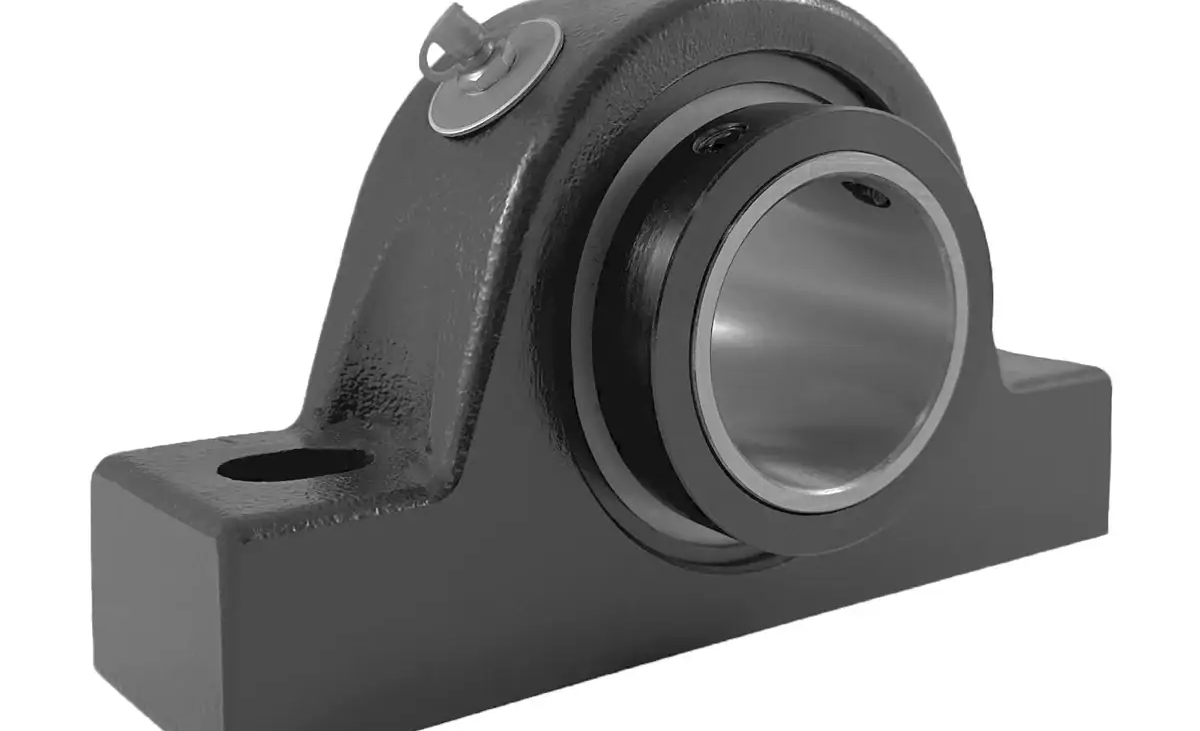

P2B-S2-204R bearing is a two-bolt spherical pillow block bearing unit with a 2-1/4" bore. Our directly interchanged SPB2-2-1/4T pillow block bearing boasts superior construction and durability compared to other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. P2B-S2-204R bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an SPB2-2-1/4T interchange built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, the unit has a high-strength mild steel collar for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SPB2-2-1/4T bearings interchange with other brands such as Dodge P2B-S2-204R, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our P2B-S2-204R bearing replacement, contact our customer service team, and we will be happy to assist you!
P2B-S2-204R Bearing Dimensions
- Part #: SPB2-2-1/4T
- Interchanges With: P2B-S2-204R
- Weight: 14.79 LBS
- Dimension (d): 2-1/4"
- Dimension (H): 2.500"
- Dimension (A): 8.875"
- Dimension (E-Min.): 6.438"
- Dimension (E-Max.): 7.063"
- Dimension (B): 2.313"
- Dimension (S): 0.750"
- Dimension (G): 1.625"
- Dimension (W): 5.000"
- Dimension (Z): 3.156"
- Dimension (BL): 3.125"
- Dimension (K): 3.250"
- Dynamic Load Capacity (Cr): 23,600 LBS
- Dynamic Load Capacity (Cr): 105.0 kN
- Static Load Capacity (Cor): 28,325 LBS
- Static Load Capacity (Cor): 126.0 kN
Feature
- Directly Interchanges With P2B-S2-204R Bearing
- Advanced PTFE Seals
- Self-Aligning Bearing Unit
- Tough Mild-Steel Locking Collar
- Metal ID Tag For Easy Re-Order
- Solid High-Strength Housing With Precision Foot Ends
- Bearing Cavity 33% Filled With Shell Gadus S2 V220 Grease
- 1/8" NPT Grease Fitting
- Accepts Automatic Grease Dispensers
- Pressure Relief Valve
- Grease Purge Valve Protects Seals From Over Lubrication
- Part #: SPB2-2-1/4T
- Interchanges With: P2B-S2-204R
- Weight: 14.79 LBS
- Dimension (d): 2-1/4"
- Dimension (H): 2.500"
- Dimension (A): 8.875"
- Dimension (E-Min.): 6.438"
- Dimension (E-Max.): 7.063"
- Dimension (B): 2.313"
- Dimension (S): 0.750"
- Dimension (G): 1.625"
- Dimension (W): 5.000"
- Dimension (Z): 3.156"
- Dimension (BL): 3.125"
- Dimension (K): 3.250"
- Dynamic Load Capacity (Cr): 23,600 LBS
- Dynamic Load Capacity (Cr): 105.0 kN
- Static Load Capacity (Cor): 28,325 LBS
- Static Load Capacity (Cor): 126.0 kN
