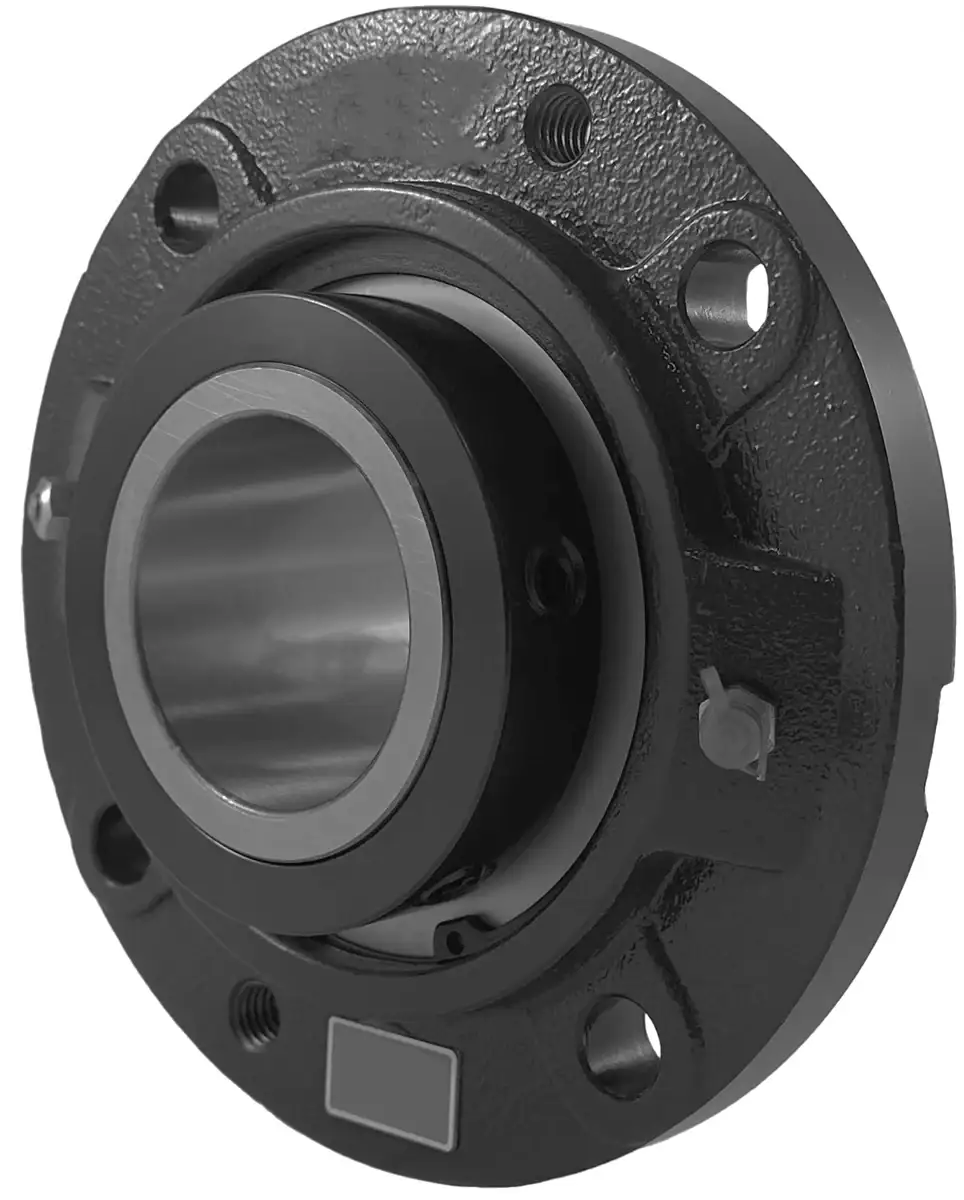

FC-S2-207R bearing is a spherical 4-bolt flange cartridge bearing unit with a 2-7/16" bore. Our directly interchanged SFC-2-7/16T bearing boasts superior construction and durability compared to other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. The housing features threaded removal holes "S" along with pry slots to remove the unit easily. FC-S2-207R bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an FC-S2-207R interchange built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, the unit has a high-strength mild steel collar for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SFC-2-7/16T bearings interchange with other brands such as Dodge FC-S2-207R, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our SFC-2-7/16T bearing replacement, contact our customer service team, and we will be happy to assist you!
SFC-2-7/16T Bearing Dimensions
- Part #: SFC-2-7/16T
- Interchanges With: FC-S2-207R
- Weight: 15.81 LBS
- Dimension (d): 2-7/16"
- Dimension (P): 6.500"
- Dimension (A): 7.625"
- Dimension (Z): 3.500"
- Dimension (J): 1.688"
- Dimension (BL): 3.375"
- Dimension (F): 5.500"
- Dimension (K): 4.000"
- Dimension (G): 0.625"
- Bolt Hole (T): 0.594"
- Removal Hole QTY: 2
- Removal Hole Size (S): 1/2-13 UNC"
- Dynamic Load Capacity (Cr): 37,630 LBS
- Dynamic Load Capacity (Cr): 167.4 kN
- Static Load Capacity (Cor): 46,960 LBS
- Static Load Capacity (Cor): 208.9 kN
Feature
- Directly Interchanges With FC-S2-207R Bearing
- Advanced PTFE Seals
- Self-Aligning Bearing Unit
- Tough Mild-Steel Locking Collar
- Metal ID Tag For Easy Re-Order
- Solid High-Strength Housing With Precision Foot Ends
- Bearing Cavity 33% Filled With Shell Gadus S2 V220 Grease
- 1/8" NPT Grease Fitting
- Accepts Automatic Grease Dispensers
- Pressure Relief Valve
- Grease Purge Valve Protects Seals From Over Lubrication
- Part #: SFC-2-7/16T
- Interchanges With: FC-S2-207R
- Weight: 15.81 LBS
- Dimension (d): 2-7/16"
- Dimension (P): 6.500"
- Dimension (A): 7.625"
- Dimension (Z): 3.500"
- Dimension (J): 1.688"
- Dimension (BL): 3.375"
- Dimension (F): 5.500"
- Dimension (K): 4.000"
- Dimension (G): 0.625"
- Bolt Hole (T): 0.594"
- Removal Hole QTY: 2
- Removal Hole Size (S): 1/2-13 UNC"
- Dynamic Load Capacity (Cr): 37,630 LBS
- Dynamic Load Capacity (Cr): 167.4 kN
- Static Load Capacity (Cor): 46,960 LBS
- Static Load Capacity (Cor): 208.9 kN
